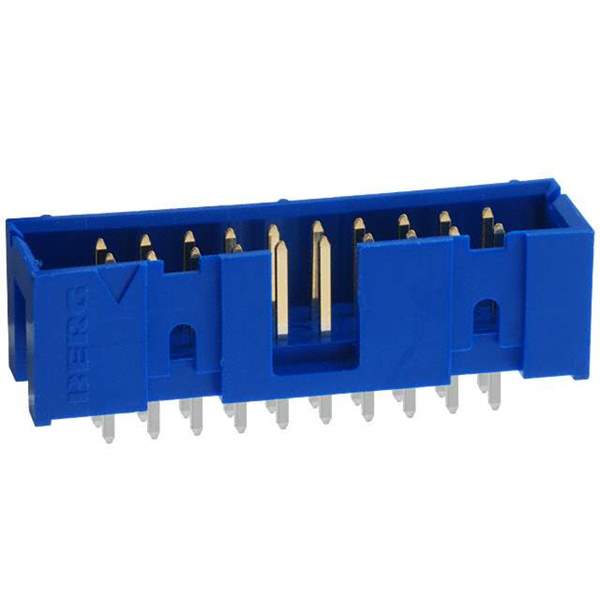

75869-104LF Real Image
Same model may have multiple batches, images only for reference.

75869-104LF

Part No 75869-104LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.377" (9.57mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Blue
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 75869
Standard Package 18
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352002-75869-104LF
Ultra Librarian 3D Model Ultra Librarian 75869-104LF CAD Model

Description

The Quickie™ 75869 is a 20-position male pin header connector that features a keying slot.

  • Style: Board-to-Cable/Wire
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish: Gold
  • GXT™ Finish Thickness: 30.0 microns (0.76 micrometers)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Thermoplastic and Glass-Filled
  • Insulation Color: Blue
  • Shrouding: Shrouded - 4 Wall
  • Temperature Range: Not Specified
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: Not Specified
  • HTSUS: 8536.69.4040
