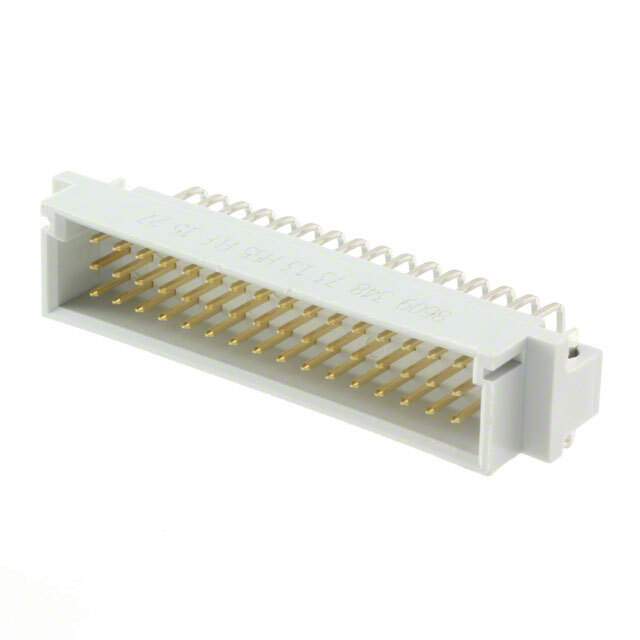

Part No 86093487313H55ELF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN DIN HDR 48POS PCB RA GOLD  /  48 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr Amphenol ICC (FCI)
Series 8609
Package Tray
Connector Type Header, Male Pins
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Features Board Lock
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polyester Thermoplastic
Base Product Number 8609348731
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-86093487313H55ELF,609-4951,86093487313H55ELF-ND
Standard Package 16
Win Source Part Number 1194541-86093487313H55ELF
Ultra Librarian 3D Model Ultra Librarian 86093487313H55ELF CAD Model

Description

The 86093487313H55ELF is a male pin header connector from Amphenol ICC (FCI).

  • Series: 8609
  • Positions: 48
  • Pitch: 0.100" (2.54mm)
  • Loaded: All positions
  • Rows: Three
  • Feature: Board lock
  • Termination: Soldering
  • Contact Finish: Gold
  • Material Insulation: Polyester thermoplastic with a UL94 V-0 flammability rating
  • Current: 1.5A
  • Temperature Range: -55°C to 125°C
