Same model may have multiple batches, images only for reference.

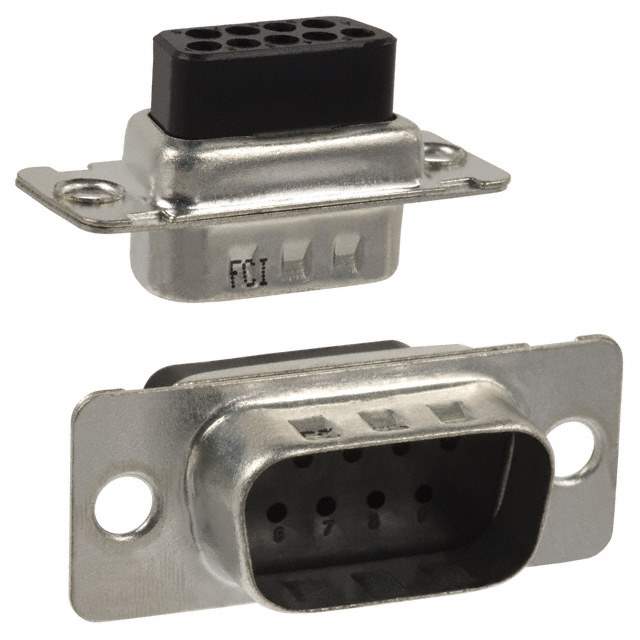

865609PLTXLF Real Image
Same model may have multiple batches, images only for reference.

865609PLTXLF

Part No 865609PLTXLF
Manufacturer Amphenol
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HOUSING PLUG 9POS / Plug for Male Contacts Housing D-Sub Connector 9 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Housings
Manufacturer Amphenol ICC (FCI)
Packaging Bulk
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin/Zinc Plated
Temperature Range - Operating -55°C ~ 125°C
Mating Cycles 200
Dielectric Material Thermoplastic
Note Contacts Not Included
Base Product Number 865609
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 609-1466
Standard Package 315
Win Source Part Number 1333223-865609PLTXLF
Ultra Librarian 3D Model Ultra Librarian 865609PLTXLF CAD Model

Description

The 1333223-865609PLTXLF is a D-sub, D-shaped connector housing product of Amphenol ICC (FCI).

  • Win Source Part Number: 1333223-865609PLTXLF
  • Other Part Number: 609-1466
  • Positions: 9
  • Rows: 2
  • Connector Type: Plug for male contacts
  • Connector Type: Signal
  • Grounding Indents: Yes
  • Shell Material Finish: Steel, tin/zinc plated
  • Shell Size Connector Layout: 1 (DE, E)
  • Panel Mount: Yes
  • Temperature Range: -55°C ~ 125°C
  • RoHS Compliant: Yes
  • Standard Package: 315
  • Supply and Demand Status: Balance
