Same model may have multiple batches, images only for reference.

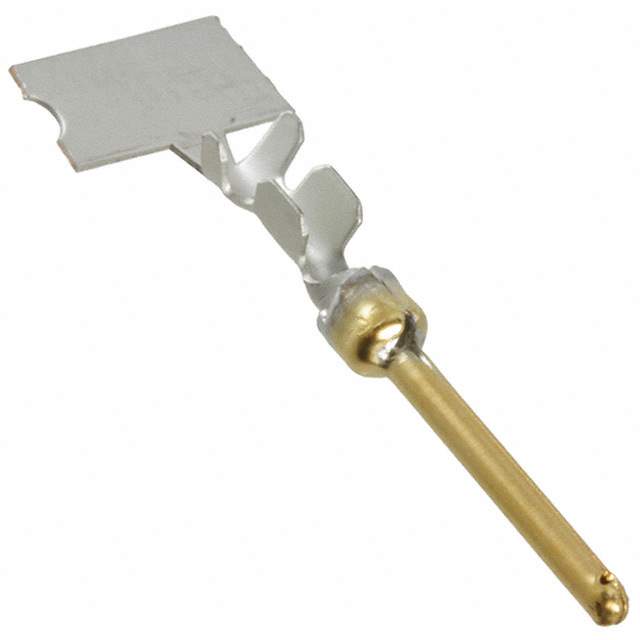

86564520064LF Real Image
Same model may have multiple batches, images only for reference.

86564520064LF

Part No 86564520064LF
Manufacturer Amphenol
Catalog D - Sub, D - Shaped Connectors - Contacts
Description CONN D-SUB PIN 20-24AWG CRIMP / D-Sub Contact Male Pin Gold 20-24 AWG Crimp Stamped
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Contacts
Mfr Amphenol ICC (FCI)
Series 8656
Package Tape & Reel (TR),Cut Tape (CT)
Type Signal
Contact Type Male Pin
Contact Form Stamped
Wire Gauge 20-24 AWG
Contact Termination Crimp
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Termination Finish Tin
Features Insulation Support
Base Product Number 865645
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 86564520064LF-ND,609-4421-2,609-4421-1
Standard Package 5,000
Win Source Part Number 973114-86564520064LF
Ultra Librarian 3D Model Ultra Librarian 86564520064LF CAD Model

Description

The Amphenol ICC (FCI) 86564520064LF is a male pin signal contact that is designed for use in D-sub, D-shaped connectors. Amphenol ICC (FCI).

  • Wire Gauge: 20-24 AWG
  • Termination Type: Crimp
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Insulation Support: Yes
  • Package: Tape & Reel (TR) or Cut Tape (CT)
  • Standard Package: 5,000
  • Operating Temperature: -55°C to 125°C
