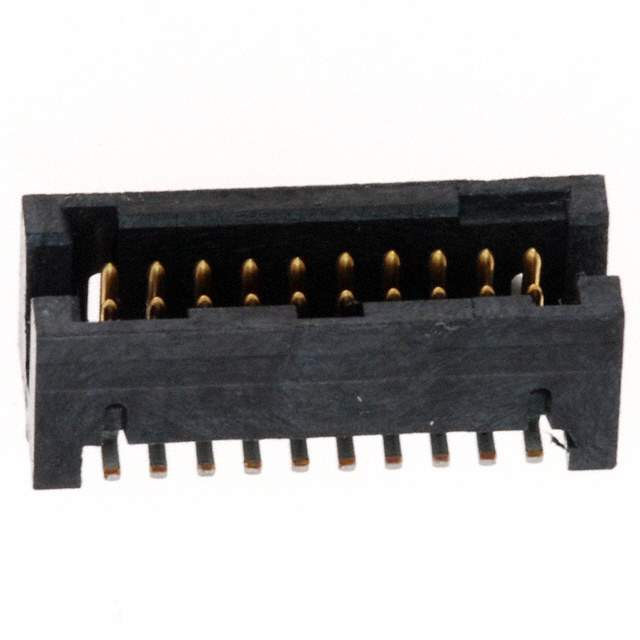

87409-110LF Real Image
Same model may have multiple batches, images only for reference.

87409-110LF

Part No 87409-110LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Rib-Cage™ III
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.226" (5.74mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Insulation Material Thermoplastic, Glass Filled
Features Board Guide
Temperature Range - Operating -55°C ~ 130°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A (DC)
Mated Stacking Heights 6.42mm
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Military
Base Product Number 87409
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-1553,87409110LF,2266-87409-110LF
Standard Package 38
Win Source Part Number 998255-87409-110LF
Ultra Librarian 3D Model Ultra Librarian 87409-110LF CAD Model

Description

The 998255-87409-110LF is a board-to-board connector that is designed to be used in various applications, including general-purpose and military applications.

  • Positions: 20
  • Material: Thermoplastic and glass-filled insulation
  • Mounting: Surface-mounted device (SMD)
  • Pitch: 0.050 inches (1.27mm)
  • Contact Finish: Gold or gold GXT
  • Current Rating: 1A (DC)
  • Supply and Demand Status: Good
