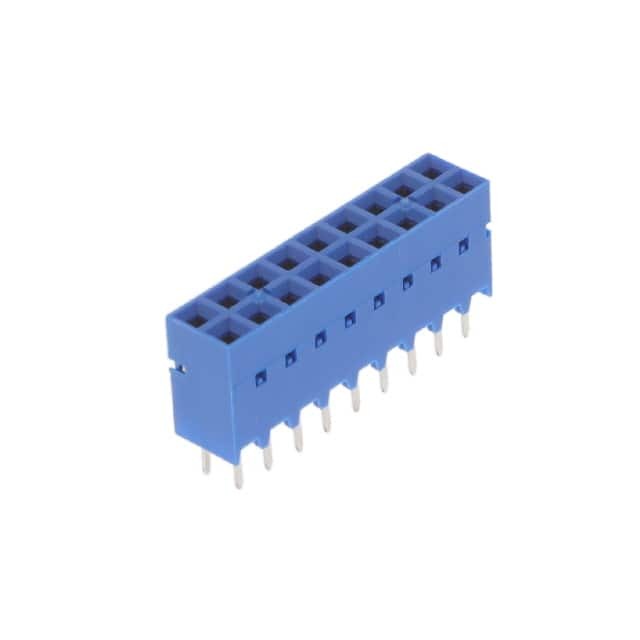

Same model may have multiple batches, images only for reference.

87606-309LF

Name: 87606-309LF
Brand: Amphenol
SKU: 908579
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	87606-309LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN RCPT 18POS 0.1 GOLD PCB / 18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Amphenol
Series	Dubox™
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	18
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Blue
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.114" (2.90mm)
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Applications	Automotive, General Purpose, Industrial, Telecommunications
Insulation Material	Thermoplastic, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	87606
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	908579-87606-309LF
Ultra Librarian 3D Model	Ultra Librarian 87606-309LF CAD Model

Alternative Products

Description

The Amphenol 908579-87606-309LF is a rectangular connector from the Dubox™ series.

Positions: 18
Connector Type: Receptacle
Termination: Solder
Fastening Type: Push-Pull
Package: 25 pieces
Mounting: Through Hole
Status: Active
Application: Automotive, General Purpose, Industrial, Telecommunications
