Same model may have multiple batches, images only for reference.

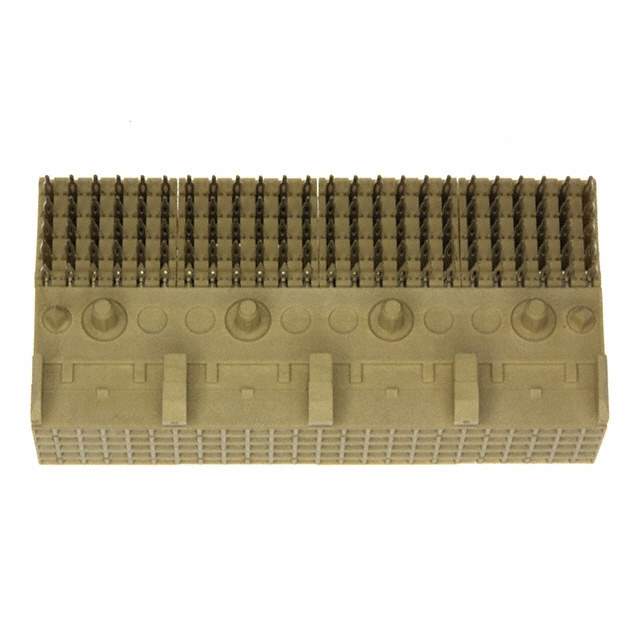

89094-102LF Real Image
Same model may have multiple batches, images only for reference.

89094-102LF

Part No 89094-102LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RCPT 120POS EDGE MNT  /  120 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr Amphenol ICC (FCI)
Series Metral® B
Package Tube
Connector Type Receptacle, Female Sockets
Number of Positions 120
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Features Board Guide, Spacer
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural
Current Rating (Amps) 1A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating 1000V
Base Product Number 89094
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-3552,89094-102LF-ND,89094102LF
Standard Package 12
Win Source Part Number 1211712-89094-102LF
Ultra Librarian 3D Model Ultra Librarian 89094-102LF CAD Model

Description

The Amphenol ICC (FCI) Metral® B 1211712-89094-102LF is a 120-position board edge, through-hole, right-angle receptacle connector with female sockets.

  • Pitch: 0.079" (2.00mm)
  • Voltage Rating: 1000V
  • Features: Board Guide, Spacer
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 105°C
  • Packaging: Tube
  • Standard Package: 12
  • Alternative Parts: 89094-102-LF and 89094102LF
