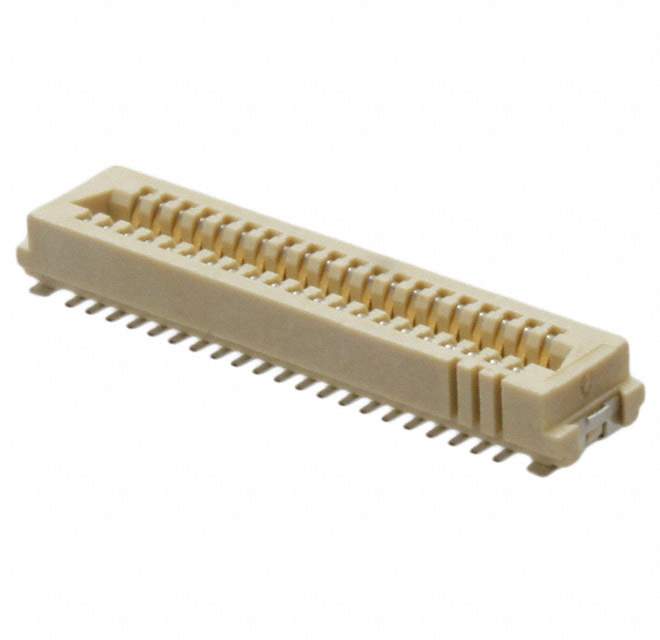

Same model may have multiple batches, images only for reference.

91930-21141LF

Name: 91930-21141LF
Brand: Amphenol
SKU: 975068
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	91930-21141LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN RCPT 41POS SMD GOLD / 41 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold or Gold, GXT™
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Amphenol ICC (FCI)
Series	Conan™, MezzSelect™
Package	Tube
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	41
Pitch	0.039" (1.00mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Solder Retention
Contact Finish	Gold or Gold, GXT™
Contact Finish Thickness	15.0µin (0.38µm)
Mated Stacking Heights	4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 7.52mm
Height Above Board	0.129" (3.28mm)
Base Product Number	91930
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	9193021141LF,2266-91930-21141LF,609-1594
Standard Package	24
Win Source Part Number	975068-91930-21141LF
Ultra Librarian 3D Model	Ultra Librarian 91930-21141LF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 975068-91930-21141LF connector is a Conan™, MezzSelect™ receptacle with outer shroud contacts and 41 positions. It features a board guide and solder retention and is mounted on a tube.

Contacts: Outer Shroud
Positions: 41
Features: Board Guide and Solder Retention
Mounting: Tube
Pitch: 0.039" (1.00mm)
Operating Temperature Range: -55°C to 85°C
Part Status: Active
Supply and Demand Status: Balance
Connectors per Package: 24
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
REACH: Affected
