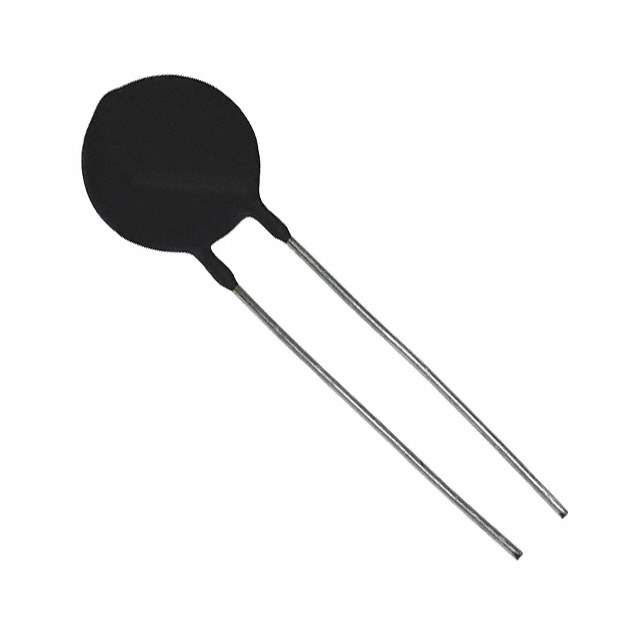

Same model may have multiple batches, images only for reference.

CL-80

Name: CL-80
Brand: Amphenol
SKU: 1325986
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CL-80
Manufacturer	Amphenol
Catalog	Inrush Current Limiters (ICL)
Description	ICL 47 OHM 25% 3A 19.56MM / Inrush Current Limiter 47 Ohms ±25% 3 A 0.770" (19.56mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Inrush Current Limiters (ICL)
Manufacturer	Amphenol Thermometrics
Packaging	Bulk
R @ 25°C	47 Ohms
Tolerance	±25%
Current - Steady State Max	3 A
R @ Current	490 mOhms
Diameter	0.770" (19.56mm)
Lead Spacing	0.328" (8.33mm)
Approval Agency	UL
Base Product Number	CL-80
RoHS Status	RoHS Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070
Other Part Number	235-1223-ND,K008L-ND,235-1223,RL6606-27.5-92-S3,Q3039943,CL80,KC008L
Standard Package	500
Win Source Part Number	1325986-CL-80
Ultra Librarian 3D Model	Ultra Librarian CL-80 CAD Model

Alternative Products

Description

The CL-80 is an inrush current limiter (ICL) manufactured by Amphenol Thermometrics.

UL Approved: Yes
RoHS Compliant: Yes
Tolerance: ±25%
Lead Spacing: 0.328" (8.33mm)
Diameter: 0.770" (19.56mm)
R @ 25°C: 47 Ohms
Current Steady State Max: 3A
R @ Current: 490 mOhms
