Same model may have multiple batches, images only for reference.

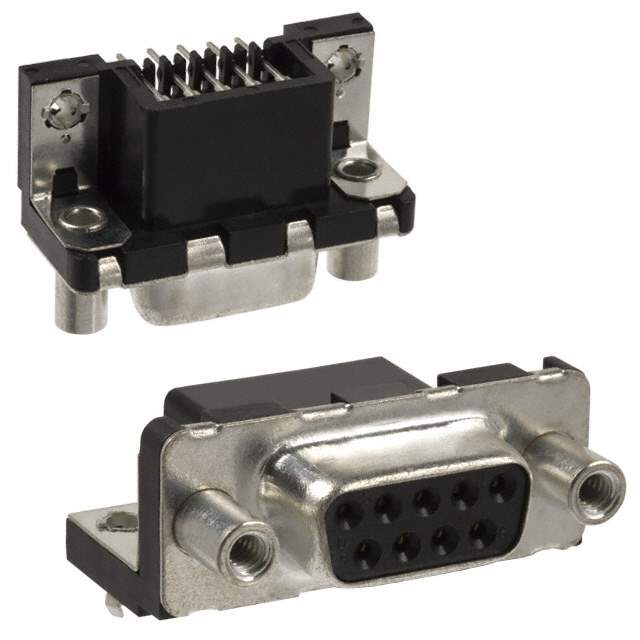

D09S13A4GV00LF Real Image
Same model may have multiple batches, images only for reference.

D09S13A4GV00LF

Part No D09S13A4GV00LF
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS R/A SLDR  /  9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series Delta D
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing 0.409" (10.40mm)
Features Board Lock, Mounting Brackets
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D09S13
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-1483
Standard Package 30
Win Source Part Number 1187751-D09S13A4GV00LF
Ultra Librarian 3D Model Ultra Librarian D09S13A4GV00LF CAD Model

Description

The Amphenol ICC (FCI) D09S13A4GV00LF D-Sub Connector is a female socket receptacle connector designed for use in signal applications.

  • Connector Type: D-Sub Connector
  • Contact Gender: Female Socket
  • Application: Signal
  • Number of Positions: 9
  • Package: Tray
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Alternative Name: 609-1483
  • Base Product Number: D09S13
