Same model may have multiple batches, images only for reference.

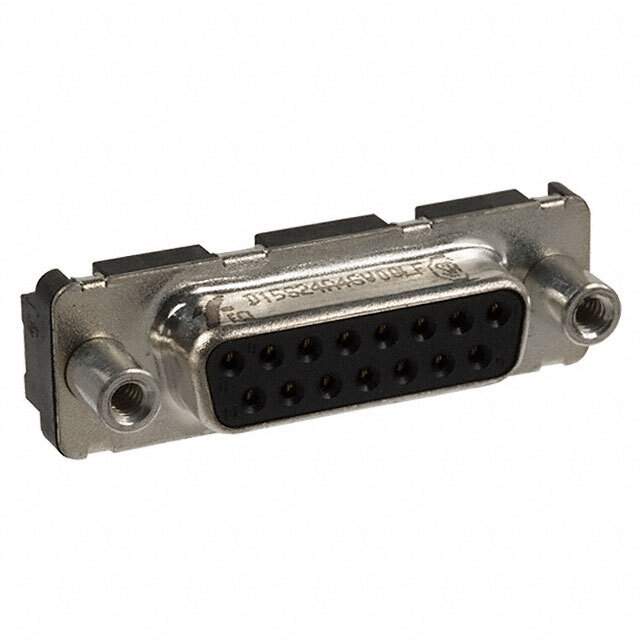

D15S24A4GV00LF Real Image
Same model may have multiple batches, images only for reference.

D15S24A4GV00LF

Part No D15S24A4GV00LF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 15POS VERT SLDR / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Features Board Lock
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D15S24
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number Q7139259,609-1497
Standard Package 25
Win Source Part Number 1333220-D15S24A4GV00LF
Ultra Librarian 3D Model Ultra Librarian D15S24A4GV00LF CAD Model

Description

The 1333220-D15S24A4GV00LF is a D-Sub connector assembly that comes in a tray packaging.

  • Positions: 15
  • Color: Black
  • Board Lock: Yes
  • Connector Type: Receptacle with female sockets
  • Contact Finish: Gold, flash coated
  • Contact Type: Signal
  • Rows: Two
  • Termination: Soldering
  • Voltage Rating: 300V
  • Contact Material: Phosphor Bronze
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Shell Size: 2 (DA, A)
  • Mounting: Through hole
  • Temperature Range: -55°C to 125°C
  • RoHS Compliant: Yes
