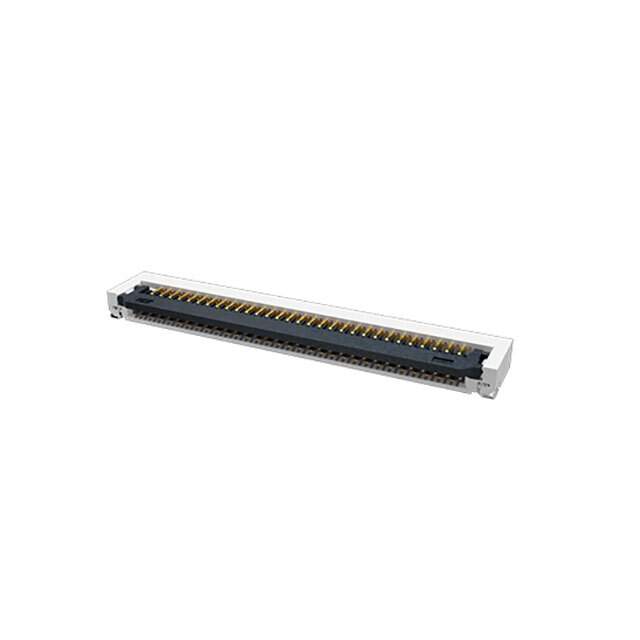

Same model may have multiple batches, images only for reference.

F51L-1A7H1-11028

Name: F51L-1A7H1-11028
Brand: Amphenol
SKU: 1337200
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	F51L-1A7H1-11028
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC BOTTOM 28POS 1MM RA / 28 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Amphenol ICC (FCI)
Series	Aorora F51L
Package	Tape & Reel
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	28
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.33mm
Height Above Board	0.100" (2.54mm)
Locking Feature	Flip Lock
Cable End Type	Notched
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA9T) , Nylon 9T, Halogen Free
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	1.97µin (0.050µm)
Housing Color	Natural
Actuator Color	Gray
Mating Cycles	30
Base Product Number	F51L-1A7H1
Standard Package	1,700
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	1337200-F51L-1A7H1-11028
Ultra Librarian 3D Model	Ultra Librarian F51L-1A7H1-11028 CAD Model

Description

The Amphenol ICC (FCI) Aorora F51L FFC, FPC (Flat Flexible) connector assembly is designed for use in electronic devices that require high-speed data transmission.

Connector Type: FFC, FPC (Flat Flexible)
Style: F51L
Number of Positions: 28
Pitch: 0.039" (1.00mm)
Mounting Type: Surface Mount, Right Angle
Mating Cycle: -
Cable End Type: -
Locking Type: ZIF (Zero Insertion Force)
Actuator Material: -
Contact Material: Phosphor Bronze
Voltage Rating: 50V
Current Rating: 0.5A
Features: Solder Retention
Lead Free: -
