Same model may have multiple batches, images only for reference.

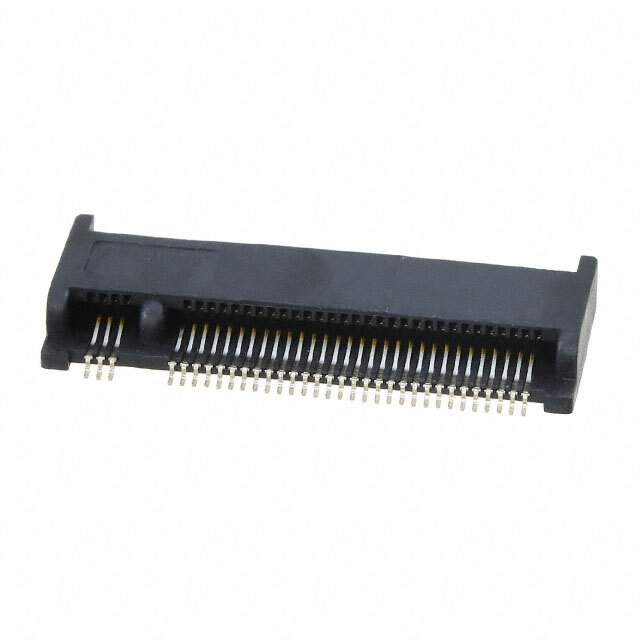

MDT275M02001 Real Image
Same model may have multiple batches, images only for reference.

MDT275M02001

Part No MDT275M02001
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN M.2 FMALE 67POS 0.020 GOLD / 67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Amphenol ICC (FCI)
Packaging Reel - TR
Card Type M.2 (NGFF) Mini Card
Gender Female
Number of Positions 67
Number of Rows 2
Pitch 0.020" (0.50mm)
Read Out Dual
Features Board Lock, Keyed
Mounting Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Color Black
Temperature Range - Operating -40°C ~ 80°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number MDT275
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 950
Win Source Part Number 1333994-MDT275M02001
Ultra Librarian 3D Model Ultra Librarian MDT275M02001 CAD Model

Description

The Amphenol ICC (FCI) electronic component (product) has the Win Source Part Number 1333994-MDT275M02001.

  • Win Source Part Number: 1333994-MDT275M02001
  • Category: Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
  • Packaging: Reel - TR
  • Positions: 67
  • Pitch: 0.020" (0.50mm)
  • Color: Black
  • Board Lock: Yes
  • Keyed Feature: Yes
  • Gender: Female
  • Mounting Type: Surface Mount, Right Angle
  • Card Type: M.2 (NGFF) Mini Card
  • Operating Temperature: -40°C to 80°C
