PT15NV02-103A2020-E-PM-S Amphenol – Price, Stock & Datasheet

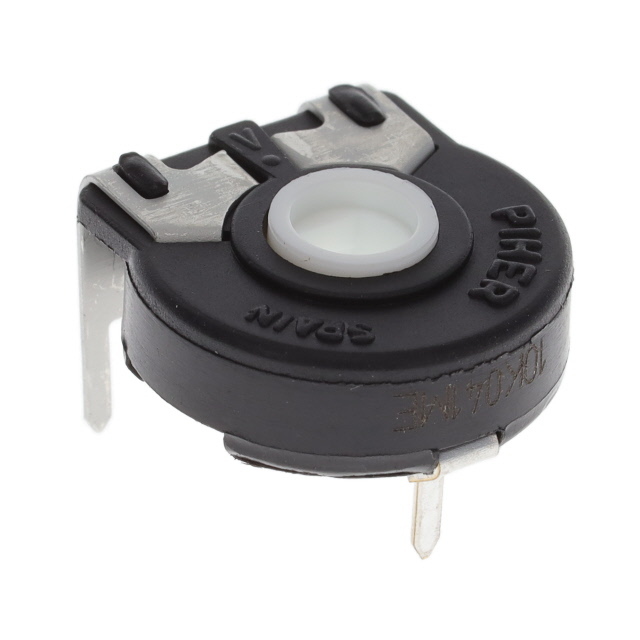

Same model may have multiple batches, images only for reference.

PT15NV02-103A2020-E-PM-S

Part No PT15NV02-103A2020-E-PM-S
Manufacturer Amphenol
Catalog Trimmer Potentiometers
Description 10 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol Piher Sensing Systems
Series PT15
Packaging Bulk
Resistance 10 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±300ppm/°C
Number of Turns 1.0
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Round - 0.591" Dia (15.00mm)
Base Product Number PT15NV02
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1477781-PT15NV02-103A2020-E-PM-S
Ultra Librarian 3D Model Ultra Librarian PT15NV02-103A2020-E-PM-S CAD Model
