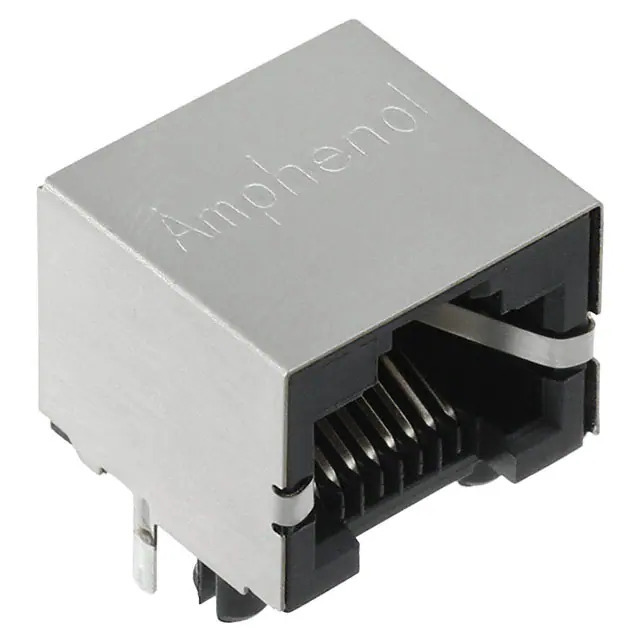

Same model may have multiple batches, images only for reference.

RJHSE5E80

Name: RJHSE5E80
Brand: Amphenol
SKU: 1362649
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RJHSE5E80
Manufacturer	Amphenol
Catalog	Modular Connectors
Description	CONN MOD JACK 8P8C R/A SHLD / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr	Amphenol ICC (Commercial Products)
Series	RJHSE
Package	Tray
Product Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	1
Number of Rows	1
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Shielding	Shielded
Ratings	-
Features	Board Lock
LED Color	Does Not Contain LED
Ingress Protection	-
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Housing Material	Thermoplastic
Temperature Range - Operating	-55°C ~ 85°C
Base Product Number	RJHSE5
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362649-RJHSE5E80
Ultra Librarian 3D Model	Ultra Librarian RJHSE5E80 CAD Model

Alternative Products

Description

The RJHSE modular connector jack is manufactured by Amphenol ICC (Commercial Products) and is a versatile and high-quality connector suitable for various applications.

Temperature Range: -55°C ~ 85°C
Shielded: Yes
Configuration: 8p8c (RJ45, Ethernet)
Mounting Type: Through Hole
Contact Finish: Gold
Material: Thermoplastic
Orientation: 90° Angle (Right)
