Same model may have multiple batches, images only for reference.

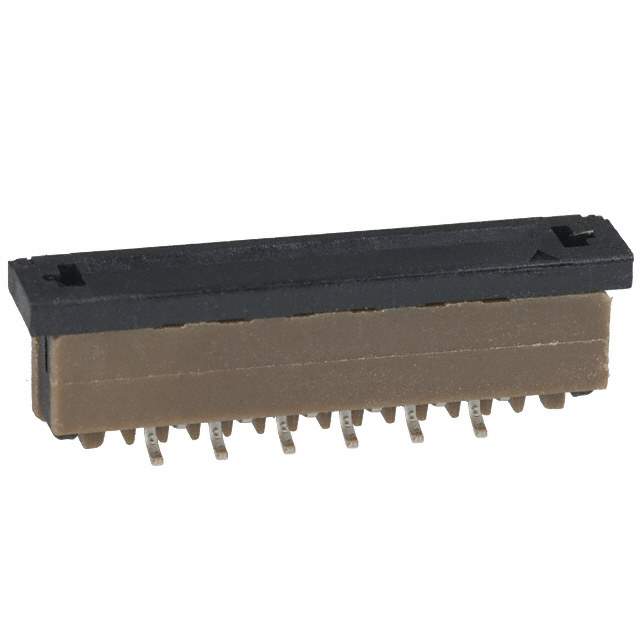

SFW12S-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW12S-2STE1LF

Part No SFW12S-2STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC VERT 12POS 1MM SMD / 12 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 12
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.33mm
Height Above Board 0.209" (5.30mm)
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Mating Cycles 20
Base Product Number SFW12S
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 609-1144-6,609-1144-1,609-1144-2,SFW12S2STE1LF
Standard Package 1,000
Win Source Part Number 1333319-SFW12S-2STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW12S-2STE1LF CAD Model

Description

The FFC, FPC (Flat Flexible) connector assembly is a high-quality connector that is designed to be used in electronic devices.

  • Contact Material: phosphor bronze
  • Voltage Rating: 100V
  • Insertion Force: zero insertion force (ZIF)
  • Mounting Type: surface-mounted
  • Pitch: 0.039 inches (1.00mm)
  • Contact Finish: tin
  • Contact Finish Thickness: not specified
  • Height Above Board: 0.209 inches (5.30mm)
  • Standard Package: 1,000
  • Housing Color: brown
  • Housing Material: thermoplastic, glass-filled
  • Actuator Material: thermoplastic, glass-filled
  • Operating Temperature: -55°C to 105°C
  • Current Rating: 1A
  • Connector Gender: male
  • Connector Type: vertical-1 sided
