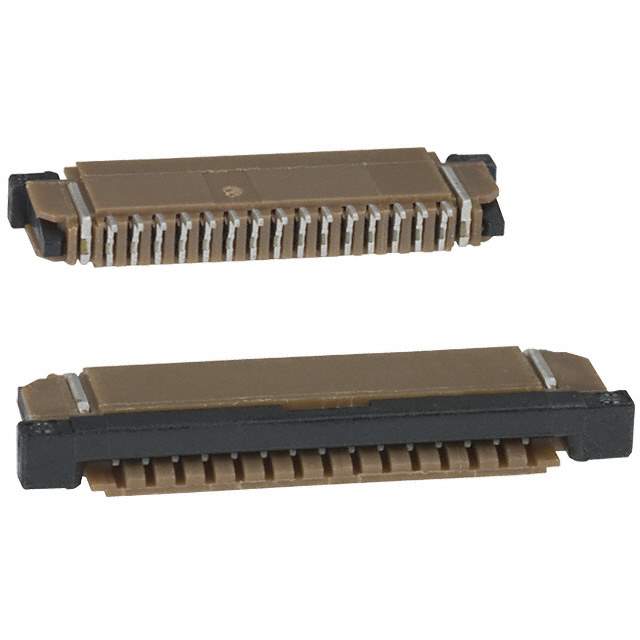

SFW15R-1STE1 Real Image1 SFW15R-1STE1 Real Image2
Same model may have multiple batches, images only for reference.
SFW15R-1STE1 Real Image1 SFW15R-1STE1 Real Image2
SFW15R-1STE1 Real Image1 SFW15R-1STE1 Real Image2
Same model may have multiple batches, images only for reference.

SFW15R-1STE1

Part No SFW15R-1STE1
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC BOTTOM 15POS 1MM RA / 15 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Amphenol
Series SFW-R
Package Tape & Reel (TR)
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.106" (2.70mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Tin Alloy
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating -
Temperature Range - Operating -
Material Flammability Rating UL94 V-0
Current Rating (Amps) -
Contact Finish Thickness -
Housing Color Brown
Actuator Color Black
Mating Cycles -
Base Product Number SFW15R
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 2,000 pcs
Win Source Part Number 1383418-SFW15R-1STE1
Ultra Librarian 3D Model Ultra Librarian SFW15R-1STE1 CAD Model

Description

The 1383418-SFW15R-1STE1 is a FFC (Flat Flexible) connector assembly from the SFW-R series by Amphenol. It is a 15-position connector with a pitch of 0.039" (1.00mm).

  • Positions: 15
  • Pitch: 0.039" (1.00mm)
  • Mating Type: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Tin Alloy
  • Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
  • Housing Color: Brown
  • Mounting Type: Surface Mount, Right Angle
  • Height Above Board: 0.106" (2.70mm)
  • FFC, FPC Thickness: 0.30mm, 0.33mm
  • Status: Obsolete
  • RoHS: Non-Compliant
