Same model may have multiple batches, images only for reference.

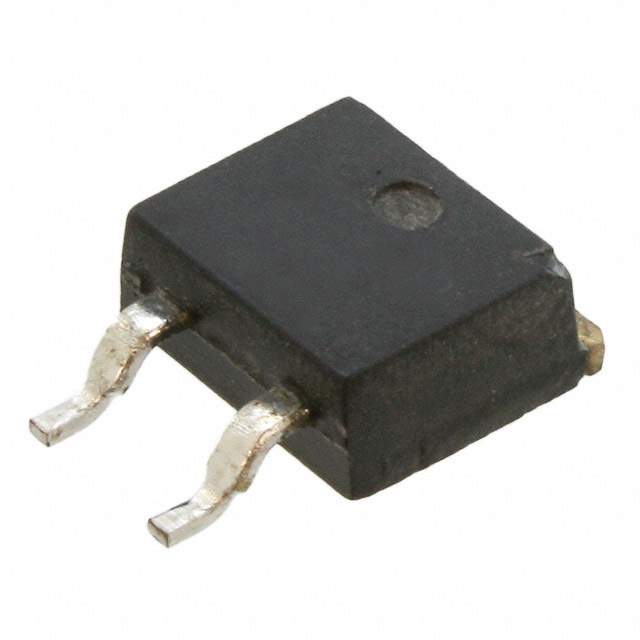

TDH35PR500JE Real Image
Same model may have multiple batches, images only for reference.

TDH35PR500JE

Part No TDH35PR500JE
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description RES 0.5 OHM 5% 35W D2PAK  /  500 mOhms ±5% 35W Chip Resistor TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Moisture Resistant Thick Film
Datasheet
TDH35PR500JE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Ohmite
Series TDH35
Package Bulk
Resistance 500 mOhms
Tolerance ±5%
Power (Watts) 35W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±700ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package D2PAK
Dimension 0.398" L x 0.378" W (10.10mm x 9.60mm)
Height - Seated (Max) 0.185" (4.70mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.29.0000
Other Names Q4176471
Standard Package 30
Win Source Part Number 1195414-TDH35PR500JE
Ultra Librarian 3D Model Ultra Librarian TDH35PR500JE CAD Model

Description

The Ohmite TDH35PR500JE is a chip resistor that is surface mountable from Ohmite.

  • Resistance: 500 mOhms
  • Power Rating: 35W
  • Composition: Thick Film
  • Terminations: 2
  • Tolerance: ±5%
  • Temperature Coefficient: ±700ppm/°C
  • Moisture-Resistant: Yes
  • Package/Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Seated Height: 0.185" (4.70mm)
  • Dimension: 0.398" L x 0.378" W (10.10mm x 9.60mm)
  • MSL Level: Unlimited
  • ECCN: EAR99
