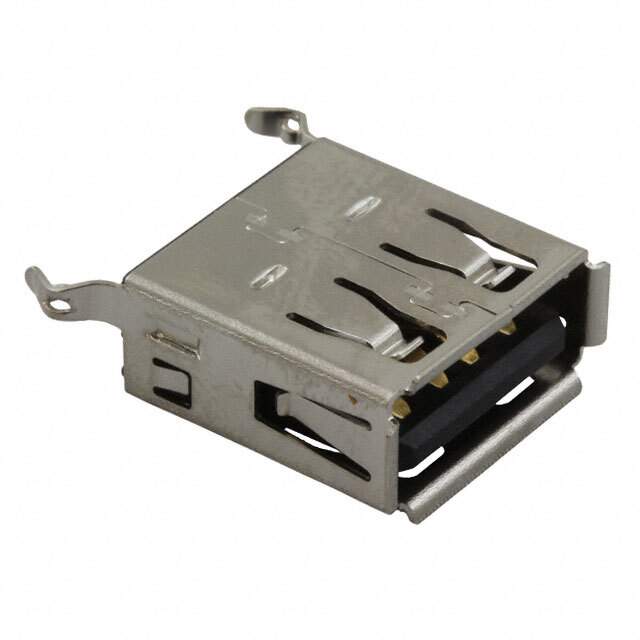

UE27AE54100 Real Image
Same model may have multiple batches, images only for reference.

UE27AE54100

Part No UE27AE54100
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEA 4POS VERT / USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole
Datasheet
UE27AE54100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Amphenol ICC (Commercial Products)
Series UE27
Package Tray
Connector Type USB-A (USB TYPE-A)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole
Mounting Feature Vertical
Termination Solder
Features Board Lock
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1.5A
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number UE27
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names UE27-AE54-100,Q6482944Z
Standard Package 120
Win Source Part Number 1056623-UE27AE54100
Ultra Librarian 3D Model Ultra Librarian UE27AE54100 CAD Model

Description

The AMPHENOL ICC UE27 series is a USB-A (USB TYPE-A) connector that comes in a tray package with a standard package of 120.

  • Voltage Rating: 30VAC
  • Current Rating: 1.5A
  • REACH: Affected
  • ECCN: EAR99
  • Mounting: Vertical on a board
