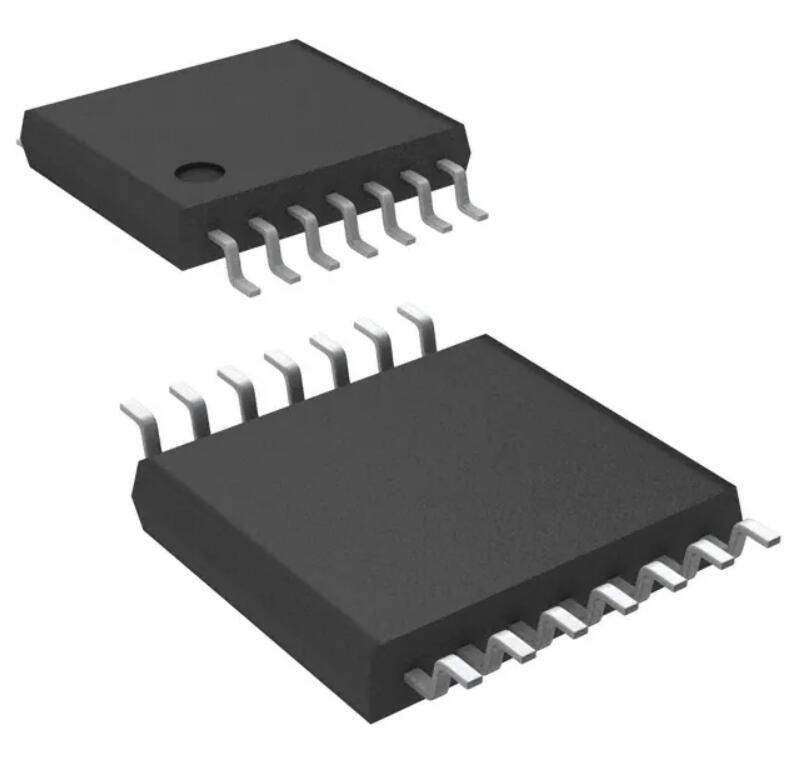

Same model may have multiple batches, images only for reference.
AS5047U-HTSTams-OSRAM USA INC.
Same model may have multiple batches, images only for reference.

AS5047U-HTST

Part No AS5047U-HTST
Manufacturer AMS-TAOS USA Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description AS5047U-HTST TSSOP14 LF T&RDP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2001512-AS5047U-HTST
Win Source Part Number Cross
Manufacturer ams-OSRAM USA INC.
Category Sensors, Transducers Position Sensors Angle, Linear Position Measuring
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
For Measuring Rotary Position
Technology Hall Effect
Output PWM, SPI
Actuator Type External Magnet, Not Included
Voltage - Supply 3V ~ 3.6V, 4.5V ~ 5.5V
Ultra Librarian 3D Model Ultra Librarian AS5047U-HTST CAD Model

Description

The 1168374 is a rotary position sensor designed for automotive applications and manufactured by ams-OSRAM USA INC.

  • Technology: Hall Effect
  • Voltage Supply: 3V to 3.6V and 4.5V to 5.5V
  • Output: PWM and SPI
  • Actuator Type: External Magnet (Not Included)
  • Application: Automotive
  • Standard: AEC-Q100
