117355-HMC626ALP5

Part No 117355-HMC626ALP5
Manufacturer Analog Devices Inc.
Catalog RF Evaluation and Development Kits, Boards

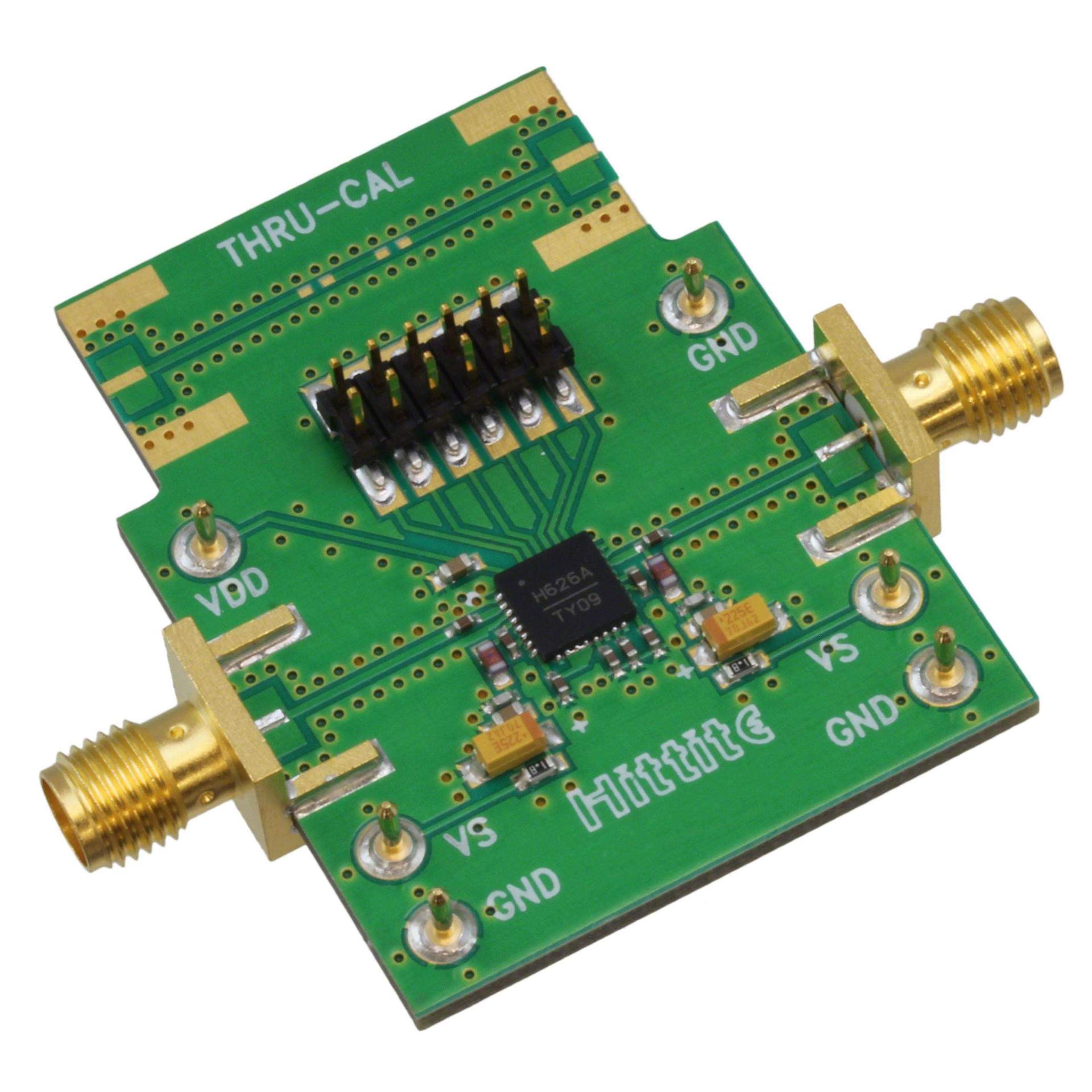

Description BOARD EVALUATION HMC626ALP5 / HMC626ALP5 series Amplifier Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr Analog Devices Inc.
Package Box
Type Amplifier
Frequency 0Hz ~ 1GHz
For Use With/Related Products HMC626ALP5
Supplied Contents Board(s)
Base Product Number HMC626
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9810
Other Names 1127-2760,116960-HMC626ALP5
Standard Package 1
Win Source Part Number 1063220-117355-HMC626ALP5
Ultra Librarian 3D Model Ultra Librarian 117355-HMC626ALP5 CAD Model

Description

The HMC626ALP5 is a high-performance, GaAs PHEMT MMIC Low Noise Amplifier (LNA) designed and manufactured by Analog Devices Inc., a renowned leader in the semiconductor industry. This LNA is part of the Hittite Microwave product family and is well-suited for a wide range of RF and microwave applications, including telecommunications, satellite communications, and radar systems.

Key Features

  • Frequency Range: The HMC626ALP5 operates over a broad frequency range, making it highly versatile for various applications.
  • High Gain: It provides excellent gain performance, which is critical for maintaining signal integrity in communication systems.
  • Low Noise Figure: With a low noise figure, the HMC626ALP5 ensures minimal added noise to the system, preserving signal quality.
  • Output Power: The device can deliver a robust output power level, contributing to efficient signal amplification.
  • Single Supply Voltage: It operates on a single supply voltage, simplifying power supply design and integration.
  • Lead-Free/RoHS Compliant: The HMC626ALP5 is compliant with environmental regulations, making it a responsible choice for eco-friendly designs.

Applications

  • Telecommunications Infrastructure
  • Satellite Communications
  • Radar Systems
  • Test Equipment
  • Defense and Space Applications

Package and Quality

Encased in a compact 5x5 mm surface-mount leadless package (LP5), the HMC626ALP5 is designed for easy integration into a wide array of printed circuit board (PCB) designs. Analog Devices Inc. ensures the highest quality and reliability of their products, and the HMC626ALP5 is no exception, meeting stringent industry standards for performance and durability.

Availability

The HMC626ALP5 from Analog Devices Inc. is available for order, and interested customers can obtain detailed specifications and support documentation directly from the manufacturer's website or authorized distributors.
