The AD2S80AKD is a sophisticated resolver-to-digital converter from Analog Devices Inc., designed to provide high-performance solutions for industrial motion control applications. This integrated circuit is capable of converting resolver format signals into a digital representation of the resolver's angle and velocity outputs, making it an essential component for precise motor control and positioning systems.

Key Features

• High Resolution: The AD2S80AKD offers a high resolution of up to 16 bits, ensuring precise angle measurements for demanding applications.
• Tracking Rate: With a fast tracking rate, this converter can handle high-speed operations, making it suitable for dynamic systems requiring quick response times.
• Accuracy: Boasting excellent accuracy, the device ensures reliable performance in critical control systems.
• Variable Resolution and Bandwidth: Users can adjust the resolution and bandwidth to match specific application needs, offering a versatile solution for various industrial tasks.
• Self-Test Function: The built-in self-test capability allows for straightforward diagnostics and system integrity checks, enhancing reliability.

Applications

The AD2S80AKD is ideal for a wide range of applications, including but not limited to:

• Robotics and automated machinery
• Machine tool positioning systems
• Servo motor feedback control
• Antenna positioning in communication systems
• Aerospace and defense navigation systems

Technical Specifications

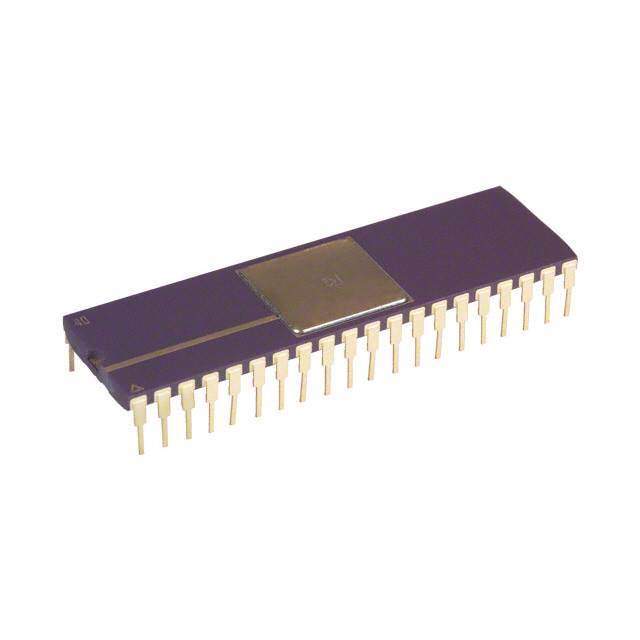

The AD2S80AKD operates over a temperature range of -55°C to +125°C, accommodating extreme environmental conditions. It is available in a robust KD package that ensures long-term durability and protection against harsh industrial environments.

Conclusion

Analog Devices Inc.'s AD2S80AKD resolver-to-digital converter is a high-quality, reliable solution for applications requiring precise position and velocity data. Its combination of high resolution, fast tracking rates, and customizable features make it a top choice for engineers and designers looking to enhance the performance of their motion control systems.
