Analog Devices Inc. AD5734AREZ Product Overview

The AD5734AREZ is a high-precision, quad, 12-/14-/16-bit, serial input, bipolar voltage output digital-to-analog converter (DAC) designed by Analog Devices Inc. This advanced component is engineered to provide reliable and accurate analog outputs from digital instructions, making it an ideal choice for a wide range of applications that require precise control of voltage outputs.

Key Features and Benefits

• Resolution: The AD5734AREZ offers selectable resolution options of 12, 14, or 16 bits, giving designers the flexibility to choose the appropriate level of precision for their application.
• Output Range: It features a versatile output range that includes bipolar voltage outputs of ±10 V, ±5 V, +10 V to -2.5 V, and +5 V to -2.5 V. This flexibility allows the DAC to be used in various configurations to suit specific system requirements.
• Interface: The DAC incorporates a serial peripheral interface (SPI) that is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with a wide range of microcontrollers and digital systems.
• On-Chip Reference: An on-chip precision output amplifier enables rail-to-rail output swing, and an internal reference minimizes the number of external components required, simplifying design and reducing board space.

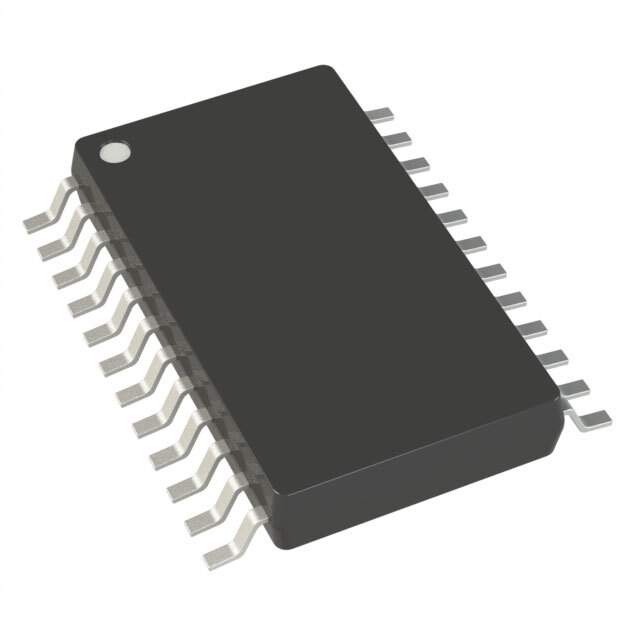

• Packaging: Housed in a compact 24-lead TSSOP (thin shrink small outline package), the AD5734AREZ is designed for space-constrained applications.

Applications

The AD5734AREZ is well-suited for a variety of applications that demand high accuracy and stability. These include:

• Industrial automation and process control
• Test and measurement equipment
• Programmable logic controllers (PLCs)
• Data acquisition systems
• Analog output modules

Technical Specifications

With an operating temperature range of -40°C to +105°C, the AD5734AREZ is built to perform reliably in harsh environments. The device also features robust error detection capabilities, including a clear watchdog timer that monitors the proper operation of the device.

For engineers and designers looking for a high-performance DAC solution, the AD5734AREZ from Analog Devices Inc. offers the precision, flexibility, and reliability needed to meet the demands of sophisticated electronic systems.
