The AD7091RBCPZ-RL is a state-of-the-art 12-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This ADC is part of their extensive portfolio of data conversion products designed for applications requiring high precision and low power consumption.

Key Features

• Resolution: 12-bit ADC with no missing codes.
• Sampling Rate: High-speed throughput of 1 MSPS (Mega-Samples Per Second).
• Power Efficiency: Ultra low power consumption with a typical supply current of 349 μA at 3 V, making it ideal for battery-powered applications.
• Power-down Mode: Features a power-down mode that reduces the current consumption to 0.5 μA, further enhancing its power efficiency.
• Interface: A versatile SPI-compatible serial interface that allows for easy integration with most microcontrollers and digital systems.
• Input Range: A 0 V to V_REF input range with V_REF set by an external reference.

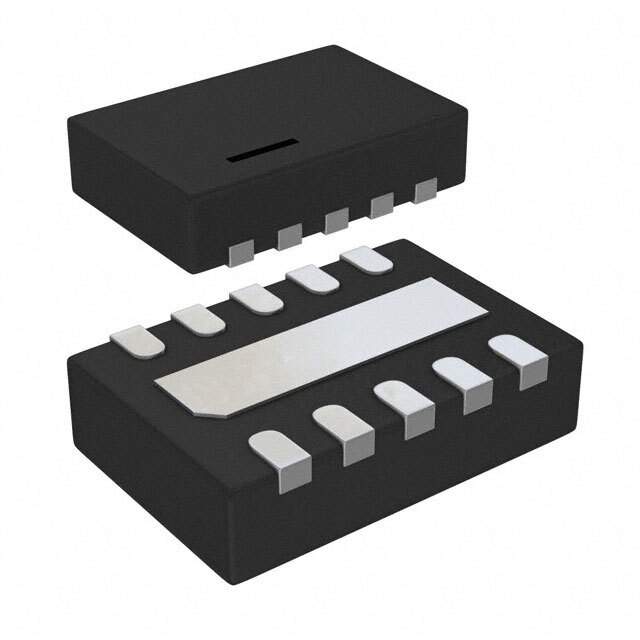

• Package: Available in a compact 10-lead LFCSP (Lead Frame Chip Scale Package), which is suitable for space-constrained applications.

Applications

The AD7091RBCPZ-RL is designed for a wide range of applications, including:

• Battery-powered devices
• Data acquisition systems
• Portable medical devices
• Instrumentation and control systems
• Energy-harvesting applications

Reliability and Quality

Analog Devices Inc. is known for its commitment to quality and reliability. The AD7091RBCPZ-RL ADC undergoes rigorous testing and quality control measures to ensure it meets the high standards expected for professional and industrial applications. With its ultra-low power operation and high-speed performance, this ADC is a reliable choice for designers looking to optimize their systems for power efficiency without compromising on speed or accuracy.

Ordering Information

The product is available with the ordering number AD7091RBCPZ-RL and is supplied in reel packaging for easy integration into manufacturing workflows. For detailed specifications, application notes, and support resources, please visit the Analog Devices Inc. website or contact their support team.
