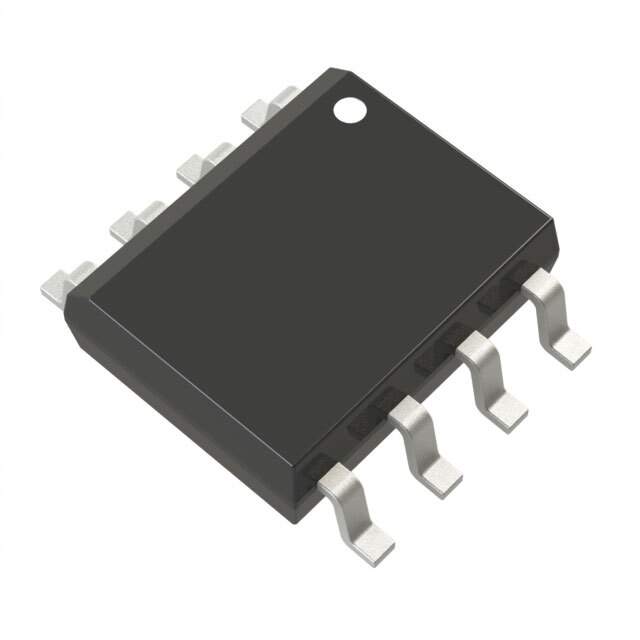

The AD711JR-REEL is a high-performance, precision monolithic operational amplifier from the renowned manufacturer Analog Devices Inc. Engineered for exceptional accuracy and stability, this op-amp is part of the Analog Devices' BiFET family and is an ideal choice for a wide range of applications, including medical instruments, professional audio equipment, and precision filters.

Key Features

• High Speed: The AD711JR-REEL boasts a fast settling time, making it suitable for applications requiring quick response times.
• Low Noise: With its low noise characteristics, it ensures a high signal integrity, which is crucial for sensitive electronics and audio precision.
• Low Input Bias Current: The device features a very low input bias current, thereby reducing errors in high impedance applications.
• Wide Bandwidth: It offers a wide bandwidth, which makes it versatile for both audio and video signal processing.

Specifications

Parameter Value Number of Channels 1 Supply Voltage ±5V to ±15V Output Current 20mA Slew Rate 16 V/μs Gain Bandwidth Product 4MHz Operating Temperature Range -40°C to +85°C Mounting Type Surface Mount Package / Case SOIC-8

Applications

The AD711JR-REEL's robust performance makes it suitable for a variety of applications, including:

• Professional Audio Equipment
• Active Filters
• Fast Data Acquisition Systems
• Medical Instrumentation
• Sample-and-Hold Circuits

With its combination of speed, precision, and versatility, the AD711JR-REEL from Analog Devices Inc. is a reliable choice for engineers and designers looking for a superior operational amplifier that can meet the demanding requirements of modern electronic systems.
