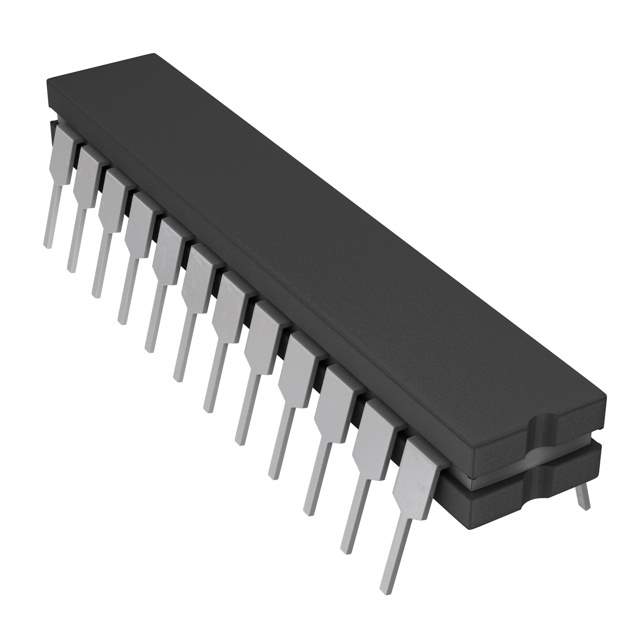

The AD7245AAQ is a precision, 12-bit, voltage-output, digital-to-analog converter (DAC) designed by the renowned semiconductor manufacturer, Analog Devices Inc. This component is part of a family of pin-compatible DACs that also includes the 10-bit AD7243 and the 8-bit AD7242. The device offers an excellent combination of accuracy, speed, and versatility, making it a prime choice for a wide array of applications.

Key Features

• Resolution: The AD7245AAQ boasts a 12-bit resolution, ensuring fine-grained analog output for precise applications.
• Settling Time: It offers a fast settling time of 4µs to 1/2 LSB, which is critical for applications requiring quick response times.
• Interface: The device features an easy-to-use, parallel data input interface, facilitating straightforward integration with microprocessors and digital systems.
• Reference: An on-board precision voltage reference of 10V and a reference buffer amplifier are included, simplifying system design and reducing external component requirements.
• Power Supply: The AD7245AAQ operates from a +12V to +15V power supply, providing flexibility in different system power architectures.
• Package: It is available in a 24-pin, 0.3 inch wide, plastic or hermetic dual in-line package (DIP), as well as a 24-lead surface-mount (SOIC) package, suitable for various mounting options.
• Temperature Range: The device is specified for operation over the extended industrial temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments.

Applications

The AD7245AAQ is ideal for use in closed-loop servo control, process control, automatic test equipment, and digital signal processing, among other applications. Its precision and speed make it particularly well-suited for applications that require a high degree of accuracy and data integrity.
