The AD7864BS-1 is a high-performance, 12-bit analog-to-digital converter (ADC) designed by the renowned semiconductor manufacturer, Analog Devices Inc. This ADC is particularly engineered for applications that demand fast, accurate data acquisition and conversion. The AD7864BS-1 is a versatile component that finds its use in a wide array of industries, including medical imaging, industrial control, instrumentation, and communication systems.

Key Features

• Resolution: The AD7864BS-1 boasts a 12-bit resolution, ensuring precise digital representation of the analog input signal.
• Quad Channel: It features four single-ended analog input channels, providing the flexibility to monitor multiple signals simultaneously.
• High-Speed Conversion: With a conversion rate of up to 166 kSPS (kilo samples per second), this ADC is capable of handling high-speed applications with ease.
• Low Power Consumption: Designed for efficiency, the AD7864BS-1 operates with a low power requirement, making it suitable for power-sensitive applications.
• Interface: It offers a parallel interface, facilitating straightforward integration with microprocessors and digital systems.
• Reference Voltage: An onboard 2.5V reference voltage provides a stable baseline for conversions, though an external reference can also be used for enhanced flexibility.

Applications

The AD7864BS-1 is ideal for a variety of applications that require high-speed, multi-channel data acquisition. Some common use cases include:

• Process Control Systems
• Data Acquisition Systems
• Medical Instrumentation
• Four-Channel Analog Input Modules
• Multichannel Data Logging

Technical Specifications

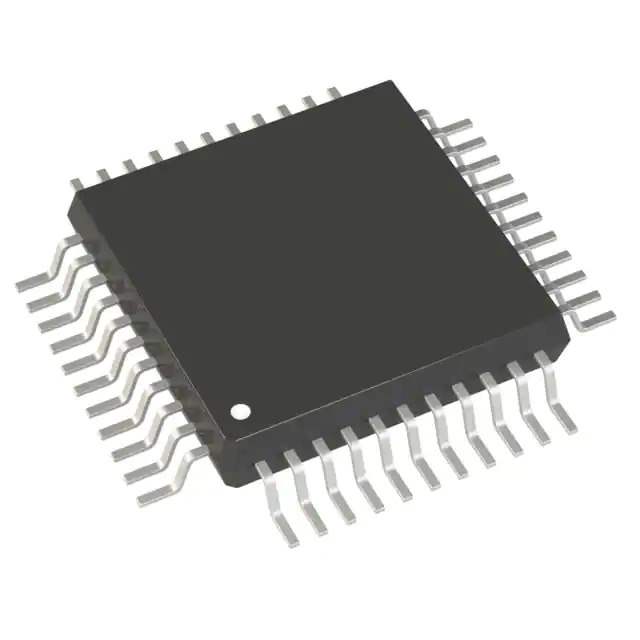

The technical specifications of the AD7864BS-1 include an operating temperature range from -40°C to +85°C, ensuring reliable performance under various environmental conditions. It is available in a 44-lead MQFP (Metric Quad Flat Pack) package, which is conducive to space-saving PCB (printed circuit board) design.

Conclusion

The AD7864BS-1 from Analog Devices Inc. is a robust and reliable ADC solution that combines speed, precision, and low power consumption. Its multi-channel capability and high-speed performance make it a top choice for engineers and designers looking to develop advanced systems with critical data acquisition needs.
