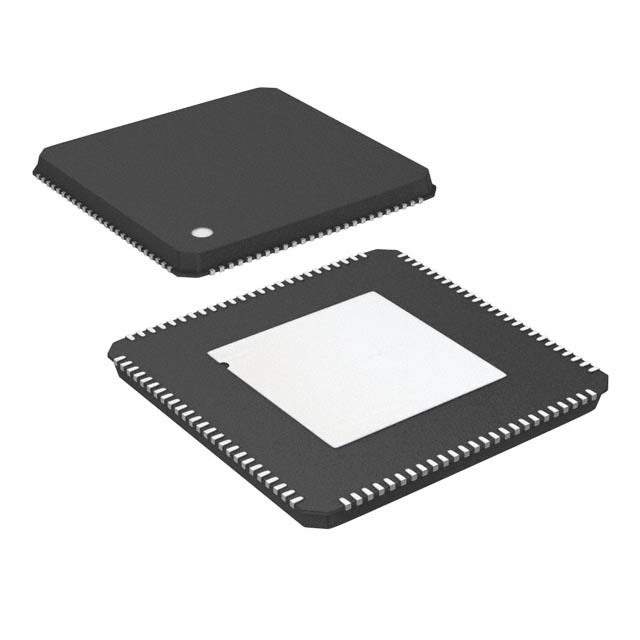

The AD8158ACPZ is a high-performance digital crosspoint switch designed and manufactured by Analog Devices Inc., a renowned leader in the semiconductor industry. This advanced chip is engineered to facilitate the routing of high-speed signals, making it an ideal choice for a variety of data communication and telecommunication applications.

Key Features

• High Bandwidth: The device supports a maximum data rate of 3.2 Gbps per port, ensuring the efficient handling of high-speed data streams.
• Scalable Architecture: With an 8 x 8 switch matrix, the AD8158ACPZ offers a flexible and scalable solution for signal routing, enabling users to configure the switch array as needed for their specific application.
• Signal Integrity: Integrated signal conditioning features, such as input equalization and output de-emphasis, help maintain signal integrity over long PCB traces or cables.
• Low Power Consumption: Designed with power efficiency in mind, the device operates with low power dissipation, making it suitable for power-sensitive applications.
• Hot-Swap Capability: This feature allows for the device to be replaced or added without the need to power down the system, providing ease of maintenance and minimal operational disruption.
• Package: The AD8158ACPZ comes in a compact 64-lead LFCSP (Lead Frame Chip Scale Package), which saves board space and is suitable for dense circuit designs.

Applications

This versatile crosspoint switch is designed for use in a range of applications, including:

• High-speed data routing in routers and switches
• Backplane and front-panel interface switching
• Digital video and audio switching
• KVM (Keyboard, Video, Mouse) multiplexing
• ATE (Automated Test Equipment) and instrumentation

Technical Specifications

The AD8158ACPZ operates over a wide temperature range and includes features such as programmable output swing and pre-emphasis levels. It is designed to minimize crosstalk and signal disturbances, ensuring reliable performance in complex systems.

Ordering Information

To incorporate the AD8158ACPZ into your design, contact Analog Devices Inc. or an authorized distributor for pricing and availability. The product is also supported by comprehensive technical documentation and design resources to facilitate integration and accelerate time-to-market.
