AD8253ARMZ-RL - Analog Devices Inc.

The AD8253ARMZ-RL is an instrumentation amplifier designed by Analog Devices Inc., a leader in high-performance analog technology. This device is tailored for applications that require high precision signal amplification, such as medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features:

• Gain Range: The AD8253ARMZ-RL offers a digitally programmable gain range, allowing users to select gains of 1, 10, 100, or 1000, facilitating its use in a wide array of applications where variable amplification is required.
• High Bandwidth: With a bandwidth of 10 MHz at G = 1, the amplifier can handle high-speed signals without significant distortion, making it ideal for fast signal acquisition and processing tasks.
• Low Distortion: The low distortion and low noise characteristics of this instrumentation amplifier ensure clean and accurate signal amplification, which is critical for high-fidelity signal processing.
• Supply Range: It operates on a supply voltage range of ±5 V to ±15 V, providing flexibility in different circuit configurations and ensuring compatibility with a variety of sensors and input signals.

Applications:

The AD8253ARMZ-RL is well-suited for a range of applications, including:

• Medical imaging systems
• Test and measurement equipment
• Industrial process control systems
• Precision data acquisition
• Automatic test equipment

Product Specifications:

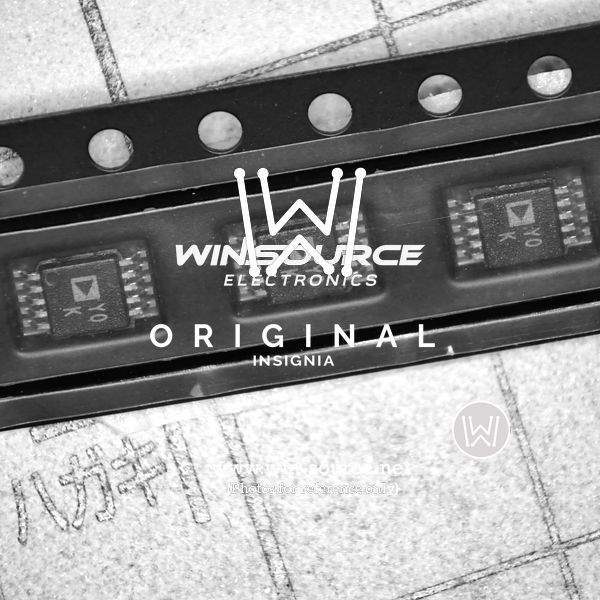

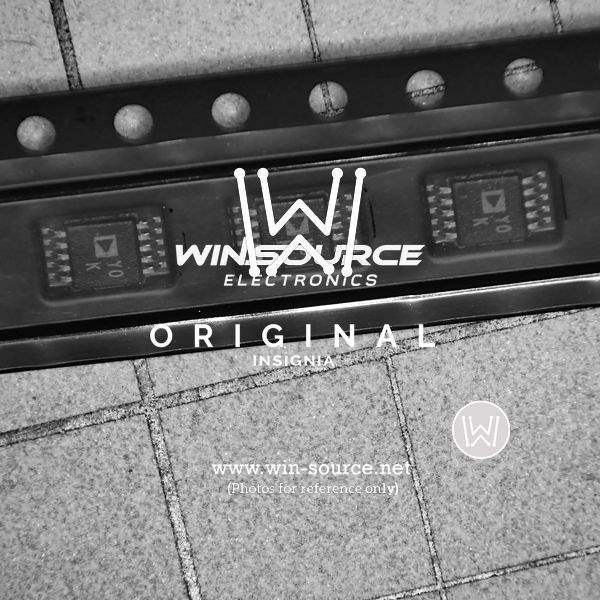

The AD8253ARMZ-RL is available in a 10-lead MSOP (Mini Small Outline Package) with a reel and lead (RL) variant, making it suitable for automated assembly processes. The device's robust design and reliable performance make it a preferred choice for engineers and designers looking for a high-quality instrumentation amplifier for their demanding applications.
