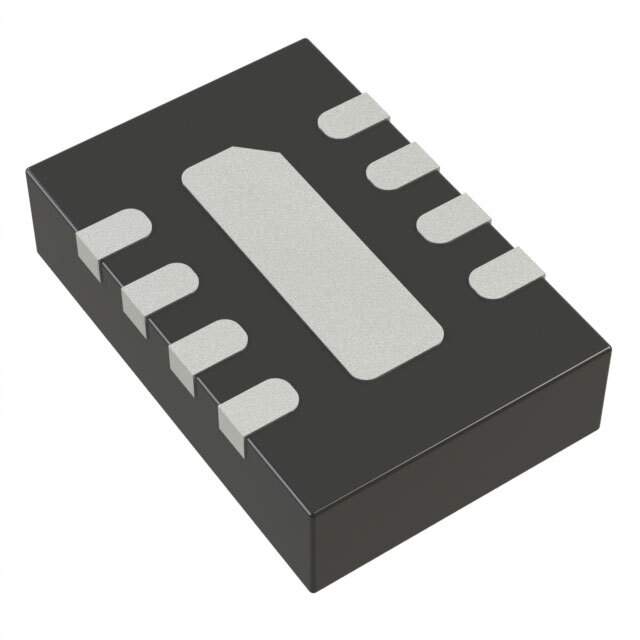

The AD8317ACPZ-R7 is a highly integrated, precision logarithmic detector from Analog Devices Inc., designed to provide accurate RF power measurement over a wide frequency range. This compact, high-performance chip is an essential tool for RF signal monitoring and control in various applications including wireless base stations, RF transceivers, and radar systems.

Key Features:

• Frequency Range: The device operates over a broad frequency spectrum from 1 MHz to 10 GHz, making it versatile for a wide array of RF applications.
• Dynamic Range: It offers an impressive dynamic range of 55 dB, ensuring accurate detection and measurement of signal power from weak to strong signals.
• Package: The AD8317ACPZ-R7 is available in a compact LFCSP (Lead Frame Chip Scale Package) that is 3mm x 3mm in size, suitable for space-constrained designs.
• Temperature Stability: The device provides consistent performance across a temperature range of -40°C to +85°C, guaranteeing reliability in various environmental conditions.
• Logarithmic Output: It features a logarithmic output voltage that is directly proportional to the logarithm of the input signal amplitude, simplifying the RF power measurement process.
• Single Supply Operation: The AD8317 can operate from a single 3.3V supply, reducing power consumption and simplifying power supply design.
• Fast Response Time: With a fast response time, the device is capable of tracking rapid changes in signal power, which is crucial for real-time applications.

Applications:

• Wireless base stations
• RF power amplifier linearization
• Transmitter antenna power measurements
• Radar systems
• General RF instrumentation

The AD8317ACPZ-R7 from Analog Devices Inc. is a testament to the company's commitment to providing advanced solutions for RF power detection and measurement. Its combination of wide frequency range, high dynamic range, and compact form factor make it a preferred choice for engineers and designers working on sophisticated RF systems.
