Analog Devices Inc. AD8510ARZ-REEL7 Precision Operational Amplifier

The AD8510ARZ-REEL7 is a high-precision, low noise, low input bias current operational amplifier from Analog Devices Inc., designed to cater to a wide array of applications requiring high accuracy and stability. This operational amplifier is part of Analog Devices' renowned portfolio of linear products, which are widely recognized for their performance and reliability.

With its advanced design, the AD8510ARZ-REEL7 offers a unique combination of features that make it ideal for precision instrumentation, medical equipment, and active filter applications. It boasts an impressive offset voltage of just 1.0 mV and an offset voltage drift of only 2 µV/°C, ensuring that accuracy is maintained over a wide temperature range. This precision is further enhanced by its low noise performance, with a noise density of only 8 nV/√Hz at 1 kHz, making it suitable for sensitive signal processing tasks.

The AD8510ARZ-REEL7 is also characterized by its low input bias current of 1 pA, which is critical for high impedance sensor applications and precision integrators. The device's wide bandwidth of 15 MHz and fast slew rate of 10 V/µs allow it to handle high-speed signals without significant distortion, making it a versatile choice for both DC and AC applications.

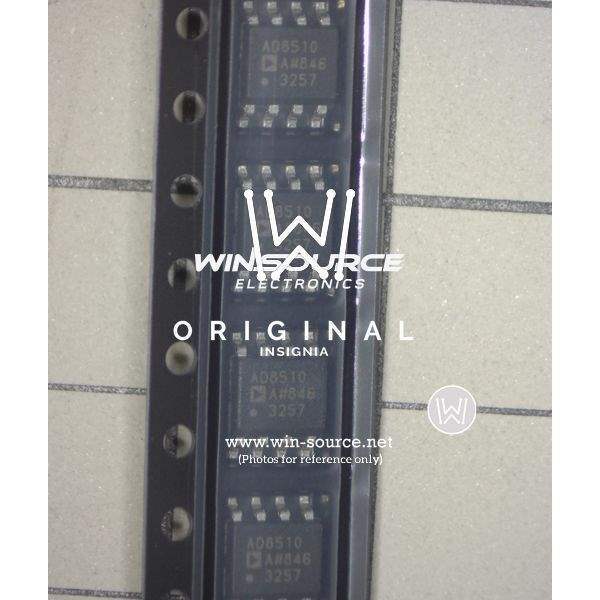

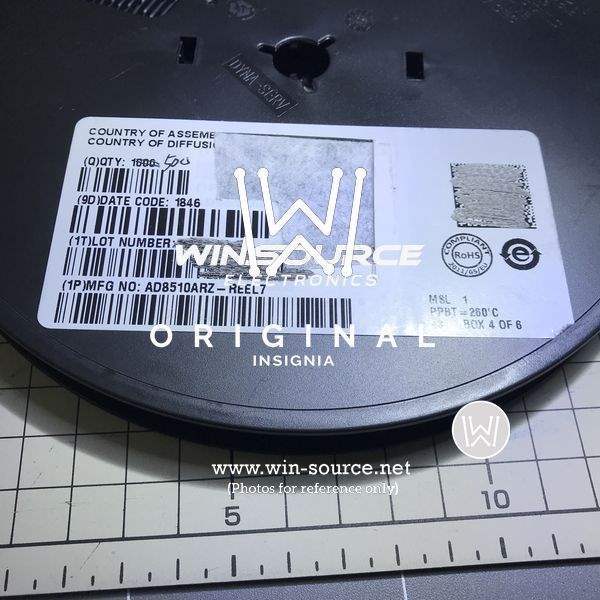

Designed for ease of use, this op-amp is available in a compact SOIC package and is part of the REEL7 packaging series, which is suitable for automated assembly processes, offering a practical solution for mass production. Its single-supply voltage range from 4.5 V to 30 V, as well as dual-supply operation from ±2.25 V to ±15 V, provides flexibility in various circuit designs.

The AD8510ARZ-REEL7's robust construction ensures reliable performance even in harsh conditions, with an operating temperature range from -40°C to +125°C. As with all Analog Devices products, this operational amplifier is backed by the company's commitment to high-quality manufacturing and support, making it a trustworthy choice for designers seeking a high-performance solution for their precision circuit needs.

For detailed technical specifications, application notes, and support resources, visit the Analog Devices Inc. website to learn more about the AD8510ARZ-REEL7 and how it can be integrated into your next high-precision project.
