AD9172BBPZ Product Overview

The AD9172BBPZ is a high-performance digital-to-analog converter (DAC) from Analog Devices Inc., designed to address the demanding requirements of modern communication systems. This DAC is part of the wide portfolio of Analog Devices' high-speed data converters, providing an exceptional combination of high dynamic range and signal bandwidth.

Key Features

• Dual 16-Bit DACs: The AD9172 features dual 16-bit DACs, capable of converting digital signals into precise analog outputs with a high degree of accuracy and linearity.
• High Sample Rates: It operates at high sample rates up to 12.6 GSPS (Giga-Samples Per Second), enabling the generation of wideband signals for high-frequency applications.
• Mix-Mode Operation: The device supports mix-mode operation, which allows for the generation of RF signals in the 2nd and 3rd Nyquist zones, increasing the flexibility in signal generation for complex systems.
• Integrated PLL: An integrated phase-locked loop (PLL) simplifies the clocking architecture by reducing the need for external clocking components and improving system reliability.
• Advanced Modulation: It supports advanced modulation schemes with its digital signal processing features, including complex digital up-conversion and interpolation filters.
• JESD204B Interface: The AD9172 uses the JESD204B high-speed serial interface, facilitating high-throughput data transfer and reducing the number of data input/output lines required.

Applications

The AD9172BBPZ is ideally suited for a wide range of applications that require high-speed, high-fidelity DAC conversion. These include:

• Wireless Infrastructure (4G, 5G)
• Microwave Point-to-Point Links
• Instrumentation
• Defense and Aerospace Systems
• High-Speed Data Acquisition Systems

Package and Quality

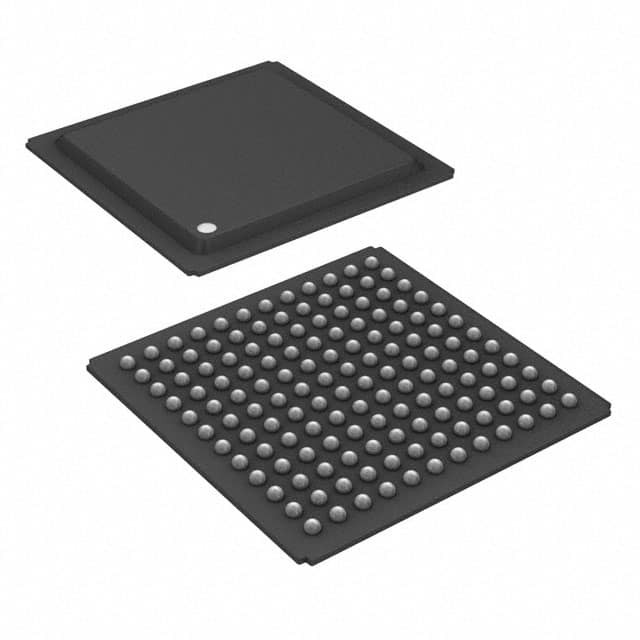

Packaged in a compact BGA (Ball Grid Array), the AD9172BBPZ is designed for space-constrained applications while ensuring robustness and reliability. Analog Devices Inc. is known for its commitment to high-quality products, and the AD9172BBPZ is no exception, meeting stringent industry standards for performance and durability.
