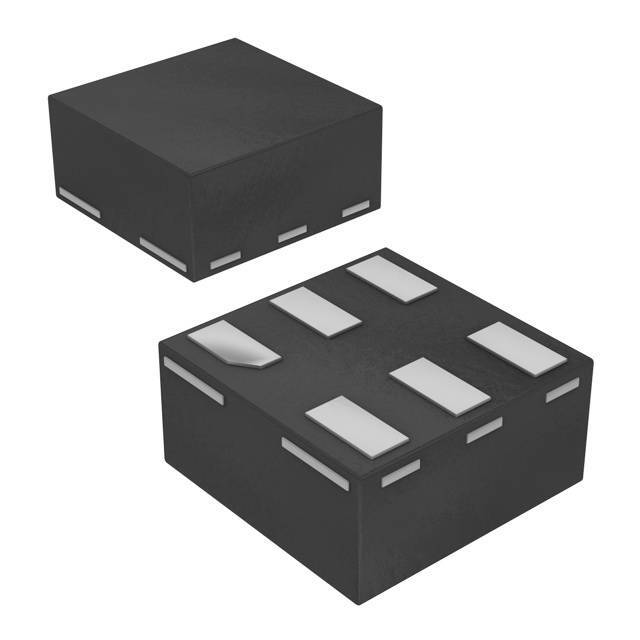

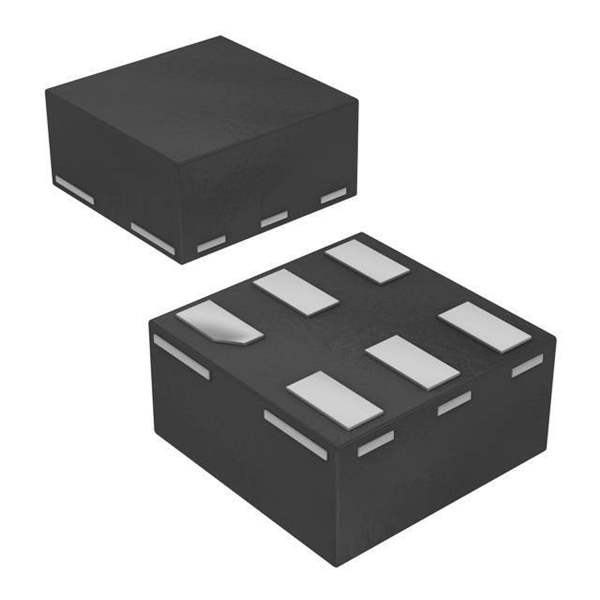

74LVC2G14GF,132 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LVC2G14GF,132

Part No 74LVC2G14GF,132
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC DUAL INV SCHMITT-TRIG 6-XSON
Datasheet
74LVC2G14GF,132 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Nexperia USA Inc.
Series 74LVC
Packaging Reel package
Logic Type Inverter
Number of Circuits 2
Number of Inputs 2
Features Schmitt Trigger
Operating Supply Voltage 1.65 V ~ 5.5 V
Maximum Quiescent Current 4μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.25 V ~ 1.2 V
Logic Level - High 1.5 V ~ 3.6 V
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Manufacturer Package 6-XSON (1x1)
Package 6-XFDFN
Win Source Part Number 765747-74LVC2G14GF,132
Popularity Medium
Supply and Demand Status Limited
Family Name 74LVC2G14
Introduction Date July 31, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian 74LVC2G14GF,132 CAD Model

Description

The Nexperia USA Inc. 765747-74LVC2G14GF,132 is a 2-circuit inverter logic type integrated circuit that comes in a 6-XFDFN package.

  • Propagation Delay: 4.3ns @ 5V, 50pF
  • Current Output High and Low: 32mA, 32mA
  • Logic Level - Low: 0.25 V ~ 1.2 V
  • Logic Level - High: 1.5 V ~ 3.6 V
  • Operating Supply Voltage: 1.65 V ~ 5.5 V
  • Quiescent Current: 4μA
  • Schmitt Trigger: Yes
  • Alternative Parts: 74LVC2G14FW4-7, 74LVC2G14FX4-7, and 74LVC2G14GV,125
  • ECCN: EAR99
  • Halogen-Free Compliant: Yes
