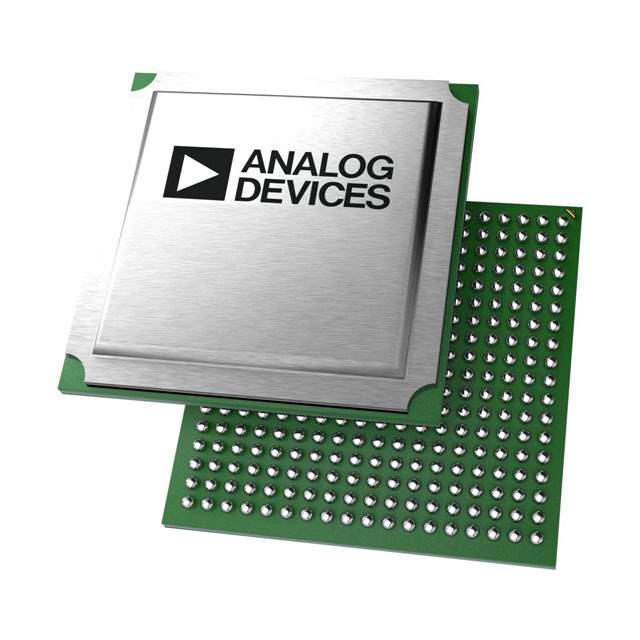

AD9177BBPZ

Part No AD9177BBPZ
Manufacturer Analog Devices Inc.
Catalog RF Front End (LNA + PA)
Description QUAD 16-BIT, 12GSPS RFDAC WITH D / RF Front End 25MHz ~ 12GHz General Purpose 324-BGA-ED (15x15)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Front End (LNA + PA)
Mfr Analog Devices Inc.
Series AD9177
Package Tray
RF Type General Purpose
Frequency 25MHz ~ 12GHz
Package / Case 324-FBGA Exposed Pad
Supplier Device Package 324-BGA-ED (15x15)
Base Product Number AD9177
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A5B2B
HTSUS 8542.39.0001
Other Names 505-AD9177BBPZ,-2735-AD9177BBPZ
Standard Package 1
Win Source Part Number 1013702-AD9177BBPZ
Ultra Librarian 3D Model Ultra Librarian AD9177BBPZ CAD Model

Description

Analog Devices Inc. AD9177BBPZ High-Performance DAC

The AD9177BBPZ is a state-of-the-art digital-to-analog converter (DAC) from Analog Devices Inc., designed to deliver exceptional performance for demanding applications. This high-speed, high-resolution DAC is an ideal solution for advanced communication systems, instrumentation, and automated test equipment.

Key Features:

  • High Resolution: The AD9177BBPZ boasts a 16-bit resolution, providing precise digital-to-analog conversion for applications that require high levels of accuracy and detail.
  • High Sample Rates: With support for sample rates up to 12.6 GSPS (Giga Samples Per Second), this DAC is capable of handling high-speed signal processing tasks with ease.
  • Integrated Dual DACs: The product features two DAC cores, allowing for dual-channel operation that can be used in complex signal generation or I/Q modulation schemes.
  • Flexible Configuration: The device offers a variety of configuration options, including selectable interpolation filters and digital signal processing (DSP) features, to meet the specific needs of different applications.
  • JESD204B Interface: The AD9177BBPZ is equipped with a JESD204B high-speed serial interface, ensuring seamless integration with modern digital systems and reducing the number of data lines required for high-throughput applications.

Applications:

The AD9177BBPZ is optimized for use in a range of applications, such as:

  • Wireless infrastructure (e.g., base stations for 4G, 5G)
  • Direct digital synthesis (DDS) for signal generation
  • High-speed instrumentation and measurement systems
  • Automated test equipment (ATE)
  • Military and aerospace electronics

With its advanced features and robust performance, the AD9177BBPZ from Analog Devices Inc. is a superior choice for professionals looking for a high-quality DAC that can keep up with the evolving demands of modern electronics. Its versatility and power make it a go-to component for engineers aiming to design systems with high precision and reliability.
