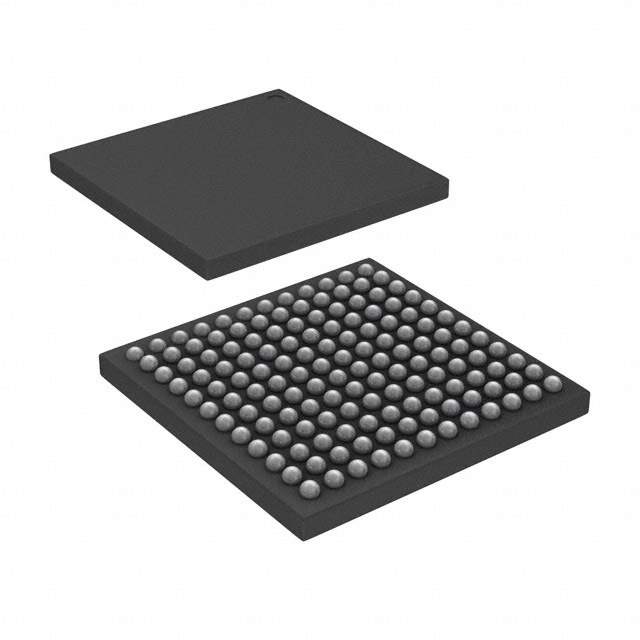

AD9273BBCZ-40 Octal LNA/VGA/AAF/ADC and CW I/Q Demodulator

Manufacturer: Analog Devices Inc.

The AD9273BBCZ-40 is a highly integrated, 8-channel analog front-end solution from Analog Devices Inc., designed for high-performance applications in medical ultrasound imaging and non-destructive testing (NDT) equipment. This sophisticated component integrates eight channels of low noise amplifiers (LNA), variable gain amplifiers (VGA), anti-aliasing filters (AAF), and 12-bit analog-to-digital converters (ADC) to provide a complete signal acquisition solution.

Key Features:

• Eight Channels: Each channel consists of an LNA, a VGA, an AAF, and a 12-bit ADC, facilitating parallel signal processing and compact system design.
• High Performance: With a maximum sample rate of 40 MSPS (Mega Samples Per Second), the AD9273BBCZ-40 offers high-speed data acquisition, making it ideal for capturing fast transient signals.
• Low Noise: The integrated LNA features a low noise figure, ensuring excellent signal quality with minimal distortion, which is critical for high-resolution imaging applications.
• Adjustable Gain: The VGA provides programmable gain control, allowing optimization of the dynamic range for various input signal conditions.
• Integrated Demodulator: The on-chip I/Q demodulator enables efficient processing of CW Doppler signals, a key feature for advanced ultrasound systems.
• Flexible Interface: The device offers a flexible LVDS (Low-Voltage Differential Signaling) digital interface that supports reduced power consumption and minimizes digital output noise.

Applications:

• Medical Ultrasound Imaging
• Non-Destructive Testing Equipment
• Portable and Compact Medical Imaging Systems
• Other High-Speed Data Acquisition Systems

The AD9273BBCZ-40 is designed with the end-user in mind, providing a balance between performance and ease of integration. Its compact form factor and comprehensive feature set make it an excellent choice for designers looking to enhance the capabilities of their high-performance imaging systems while reducing the overall system complexity and footprint.

As part of Analog Devices Inc.'s commitment to quality, the AD9273BBCZ-40 is built to meet the highest standards, ensuring reliable and consistent performance across a variety of demanding applications.
