Product Overview: AD9833BRMZ-REEL7

The AD9833BRMZ-REEL7 is a highly integrated waveform generator produced by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This device is designed to produce sine, triangular, and square wave outputs with high precision and stability. As a member of the Direct Digital Synthesis (DDS) family, the AD9833BRMZ-REEL7 offers a variety of features making it suitable for a wide range of applications including signal generation, wave shaping, and modulation.

Key Features and Benefits

• Programmable Waveform Generation: The AD9833BRMZ-REEL7 can generate sine, triangular, and square waveforms, allowing for flexibility in various application requirements.
• Digital Frequency Control: With a 28-bit frequency resolution, the device enables precise control over the output frequency, making it ideal for applications requiring fine frequency tuning.
• Low Power Consumption: The device operates with a power supply ranging from 2.3V to 5.5V and features a power-down function, which significantly reduces power consumption when not in use.
• Compact Size: Offered in a 10-lead MSOP (Mini Small Outline Package), the AD9833BRMZ-REEL7 is suitable for space-constrained applications.
• Serial Interface: The inclusion of a 3-wire SPI-compatible serial interface facilitates easy integration into existing digital systems and microcontroller-based projects.

Applications

The versatility of the AD9833BRMZ-REEL7 makes it an excellent choice for a variety of applications, including:

• Function generators
• Portable instrumentation
• Phase-locked loops (PLLs)
• Test and measurement equipment
• Frequency modulation and sweep

Product Packaging

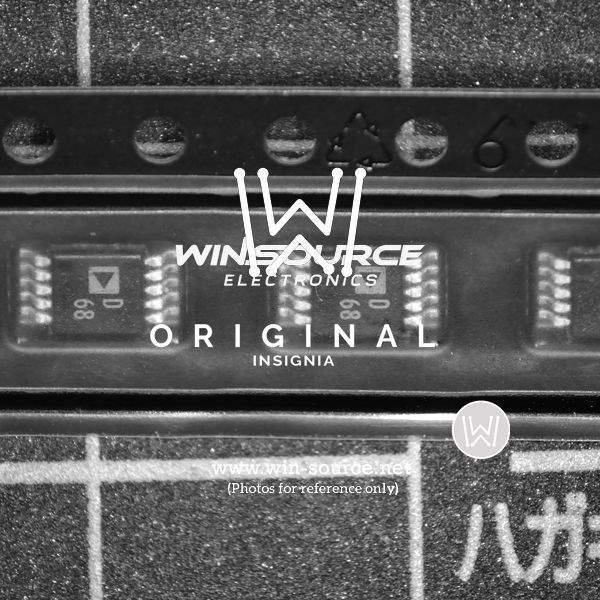

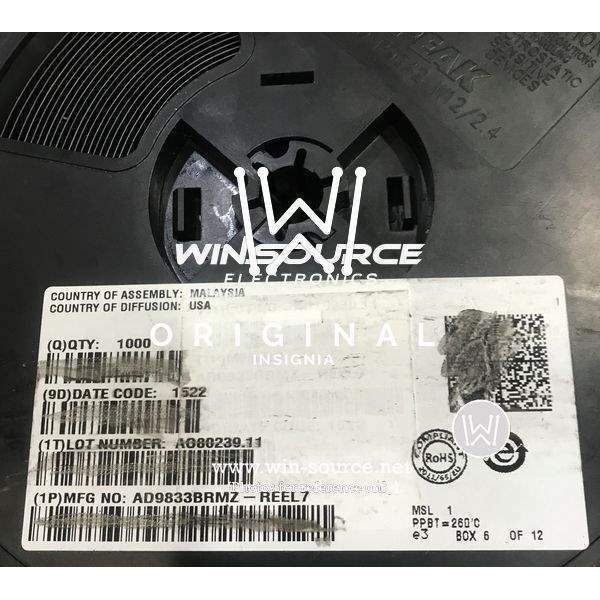

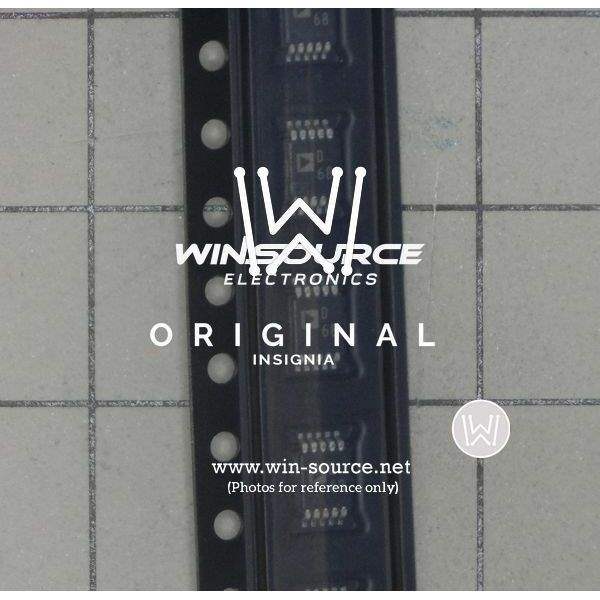

The AD9833BRMZ-REEL7 is provided in a reel format, facilitating automated assembly processes and volume production. The REEL7 designation indicates that this product is supplied in a 7-inch reel, commonly used for surface-mount technology (SMT) components.

With its high level of integration and performance, the AD9833BRMZ-REEL7 from Analog Devices Inc. represents a robust solution for designers looking to incorporate reliable waveform generation into their electronic designs.
