Introducing the ADA4692-2ACPZ-RL Operational Amplifier from Analog Devices Inc.

The ADA4692-2ACPZ-RL is a high-performance, dual operational amplifier (op-amp) designed by Analog Devices Inc., a leader in the semiconductor industry. This precision amplifier is part of their renowned portfolio, which is crafted to meet the demanding requirements of modern electronic applications. The ADA4692-2ACPZ-RL is specifically engineered to deliver low noise, low distortion, and high speed, making it an ideal choice for a wide range of applications including sensor signal conditioning, active filters, and audio amplification.

Key Features:

• Supply Voltage: The device operates from a single 5 V to 10 V supply or dual ±2.5 V to ±5 V supplies, providing flexibility in various circuit configurations.
• Low Noise: With a low voltage noise density of 8 nV/√Hz at 1 kHz, the ADA4692-2ACPZ-RL ensures signal integrity and minimizes unwanted signal interference.
• High Output Current: It can deliver a high output current, making it suitable for driving heavy loads.
• Wide Bandwidth: The op-amp features a high bandwidth of 10 MHz, allowing it to handle a broad range of frequencies.
• Slew Rate: A fast slew rate of 16 V/μs enables the amplifier to respond quickly to changes in the input signal.

Package and Reliability:

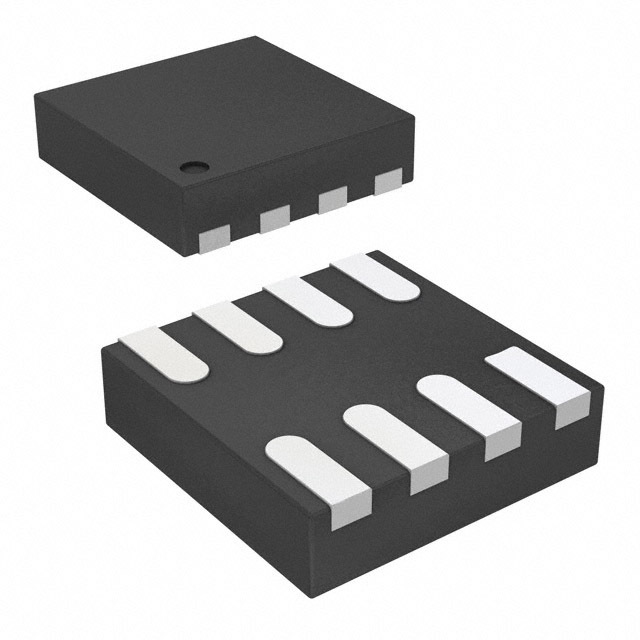

The ADA4692-2ACPZ-RL comes in a compact LFCSP (Lead Frame Chip Scale Package) which is designed for space-saving on the PCB and is specified over the extended industrial temperature range of -40°C to +125°C. This ensures reliable performance in harsh environments and is suitable for automotive and industrial applications where temperatures can fluctuate significantly.

Applications:

• Automotive sensor interfaces
• Data acquisition systems
• Professional audio equipment
• Active filtering networks
• Portable and battery-powered electronics

The ADA4692-2ACPZ-RL by Analog Devices Inc. is a testament to the company's commitment to providing high-quality, reliable components for advanced electronic systems. With its robust feature set and versatile performance capabilities, this operational amplifier stands out as an excellent choice for designers looking to enhance the performance and efficiency of their applications.
