Analog Devices ADCMP564BRQ High-Speed Comparator

The ADCMP564BRQ from Analog Devices Inc. is a high-speed comparator that offers fast propagation delays and low jitter performance, making it an ideal choice for a wide range of precision timing and high-speed signal processing applications. This component is designed to meet the rigorous demands of systems that require ultra-fast response times and high accuracy.

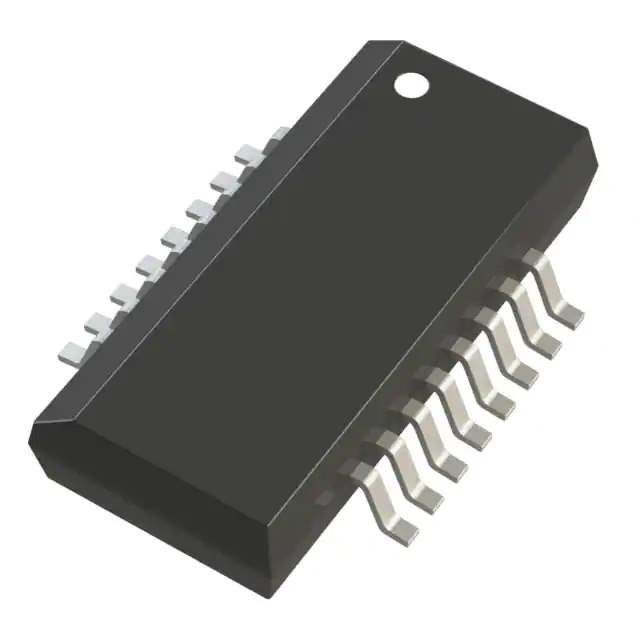

Encased in a compact 16-lead QSOP package, the ADCMP564BRQ features a dual complementary output (PECL and TTL/CMOS), which allows for flexible interfacing with a variety of logic families. This versatility makes it suitable for use in mixed-signal environments where integration with both digital and analog components is necessary.

The device operates over a wide supply voltage range of -5.2V for the PECL outputs, and a 5V nominal supply for the TTL/CMOS output. This range ensures compatibility with most standard logic levels and provides the user with the flexibility to use the device in various power environments.

With its exceptional performance characteristics, the ADCMP564BRQ boasts a propagation delay of typically 0.5ns and an extremely low overdrive and slew rate dispersion of 25ps, ensuring precise timing and minimal signal distortion. The input voltage range of the comparator extends from -100mV to +100mV, providing a generous margin for detecting small signal amplitudes.

Additional features of the ADCMP564BRQ include latch function and programmable hysteresis, which enhance its usability in complex digital systems. The latch function allows the user to control the timing of the output signal, while the programmable hysteresis can be used to set the sensitivity of the comparator to input signal noise, thus improving its robustness in noisy environments.

Whether it's for high-speed data acquisition, clock recovery, zero-crossing detectors, or pulse-shape discrimination, the ADCMP564BRQ is built to deliver reliable and consistent performance. Its combination of speed, precision, and flexibility makes it an excellent choice for engineers looking to enhance the performance of their digital and mixed-signal designs.

For detailed specifications, application notes, and support resources, customers are encouraged to visit the Analog Devices Inc. website or contact their local sales representative.
