ADCMP601BKSZ-REEL7 - Analog Devices Inc.

The ADCMP601BKSZ-REEL7 is a high-speed comparator from Analog Devices Inc. known for its fast propagation delays and low jitter performance. This precision comparator is designed to operate over a wide supply voltage range, making it suitable for a variety of applications requiring quick response times and high accuracy.

Key Features:

• Fast Propagation Delay: The device boasts a typical propagation delay of 700 ps, ensuring rapid signal processing for time-critical applications.
• Low Jitter: With exceptionally low jitter, the ADCMP601BKSZ-REEL7 provides a stable and reliable performance, which is crucial for high-speed digital signal processing.
• Wide Supply Voltage Range: It operates over a supply voltage range from 2.5 V to 5.5 V, accommodating various system design requirements.
• PECL and LVDS Compatible Outputs: The comparator is equipped with both PECL and LVDS compatible outputs, offering flexibility in interfacing with different logic families.
• Latch Function: It includes a latch function that allows the user to hold the output state, adding to the component's versatility.

Applications:

The ADCMP601BKSZ-REEL7 is ideal for high-speed data acquisition systems, zero-crossing detectors, and pulse-width modulators. It is also well-suited for clock and data recovery circuits, ATE equipment, and high-speed instrumentation, where precision and speed are of the essence.

Quality and Reliability:

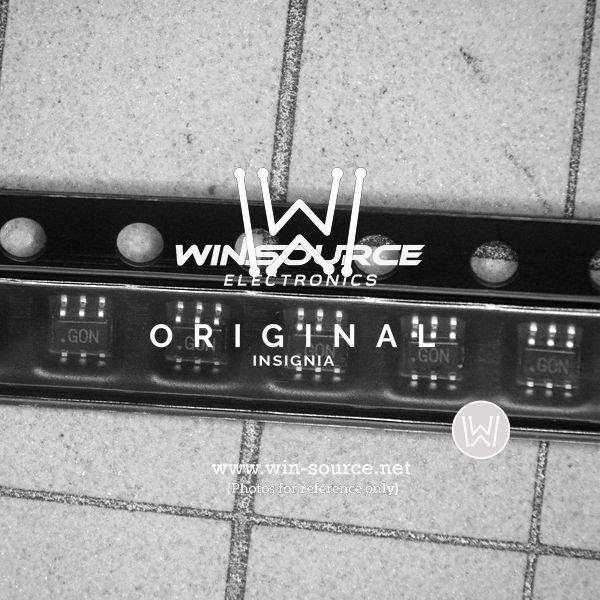

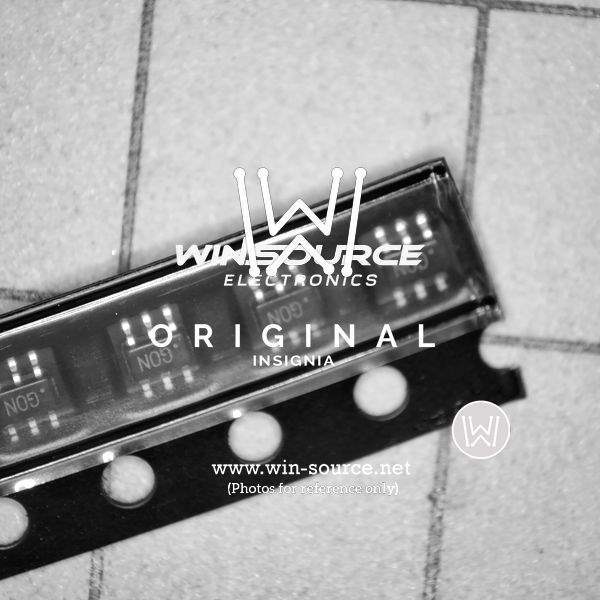

Analog Devices Inc. is renowned for its commitment to quality, and the ADCMP601BKSZ-REEL7 is no exception. It is available in a compact 6-lead SC70 package, and its surface-mount design is optimized for automated assembly processes. The REEL7 designation indicates that the product is provided in tape and reel packaging, which facilitates efficient handling and placement during the manufacturing process.

For detailed specifications, application notes, and further information, interested parties should consult the datasheet and technical resources provided by Analog Devices Inc. or contact their local sales representative.
