Product Overview: ADF7022BCPZ-REEL

The ADF7022BCPZ-REEL is a high-performance, low-power transceiver designed by Analog Devices Inc., a leader in the semiconductor industry. This transceiver is specifically tailored for the ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands. It operates within the range of 169 MHz to 960 MHz, providing a versatile solution for various wireless applications.

This device comes in a compact LFCSP (Lead Frame Chip Scale Package) that is both space-saving and efficient, making it ideal for portable or space-constrained applications. The ADF7022BCPZ-REEL is part of a reel package, which facilitates easier handling and manufacturing processes, particularly for high-volume production environments.

Key Features:

• Frequency Range: Operates across a wide frequency range from 169 MHz to 960 MHz, suitable for a multitude of global ISM band applications.
• Modulation: Supports various modulation schemes including 2FSK, 3FSK, 4FSK, GFSK, OOK, and GOOK, providing flexibility in designing communication protocols.
• Low Power Consumption: Designed for power-sensitive applications, it features a low current consumption in both transmit and receive modes, extending battery life in portable devices.
• Data Rate: Capable of data rates up to 200 kbps, allowing for a wide range of data transmission requirements.
• Integrated Voltage Regulator: Contains an onboard voltage regulator, which simplifies power supply design and enhances performance stability.
• Automatic Frequency Control (AFC): Equipped with AFC to compensate for frequency drift, ensuring reliable communication even in varying temperature environments.

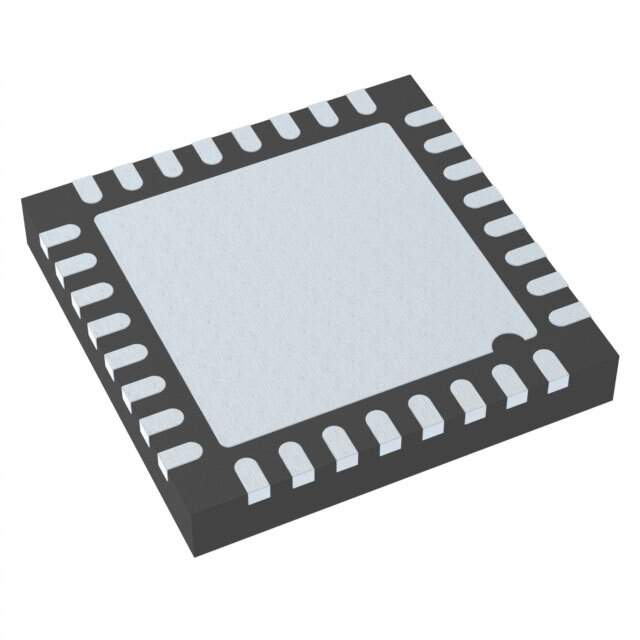

• Package Type: Supplied in a 32-lead LFCSP package, which is known for its thermal performance and minimal footprint.

Applications:

The ADF7022BCPZ-REEL is well-suited for a variety of applications, including but not limited to:

• Wireless metering
• Home and building automation
• Industrial control and monitoring
• Wireless sensor networks
• Remote keyless entry systems
• Security and alarm systems

With its robust feature set, the ADF7022BCPZ-REEL from Analog Devices Inc. is a reliable choice for designers seeking a high-quality, flexible, and power-efficient transceiver for their wireless communication needs.
