Product Overview: ADF7023BCPZ from Analog Devices Inc.

The ADF7023BCPZ is a high performance, low power, transceiver designed by Analog Devices Inc., renowned for its expertise in high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs). This transceiver is specifically engineered for robust and efficient communication in the industrial, scientific, and medical (ISM) frequency bands.

Key Features

• Frequency Range: The device operates in the frequency range of 431 MHz to 464 MHz and 862 MHz to 928 MHz, making it versatile for a wide range of applications in different regions.
• Modulation: It supports advanced modulation schemes, including 2-FSK, 3-FSK, 4-FSK, GFSK, MSK, GMSK, and OOK, allowing for flexibility in communication protocols.
• Low Power Consumption: The ADF7023BCPZ is designed with power efficiency in mind, featuring a low current transceiver mode and several power-down modes to conserve energy when not in active use.
• Integrated Analog and Digital Functionality: The device includes an integrated packet handler, automatic frequency control, and a temperature sensor, reducing the need for external components and simplifying design.
• Performance: It boasts high sensitivity and output power range, ensuring reliable communication over long distances or in challenging environments.

Applications

The ADF7023BCPZ is ideal for a variety of applications, including:

• Wireless sensor networks
• Home and building automation
• Smart metering
• Industrial control systems
• Remote keyless entry systems

Technical Specifications

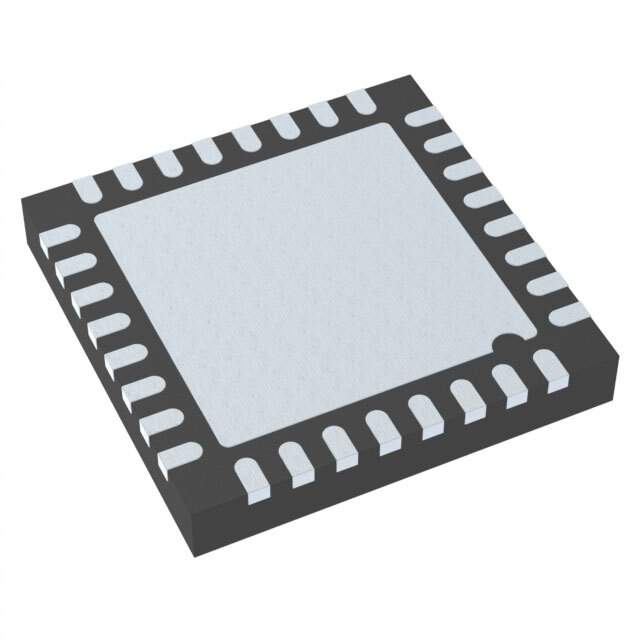

The device comes in a compact 32-lead, 5 mm × 5 mm LFCSP package, which is suitable for space-constrained applications. Its operating temperature range of -40°C to +85°C ensures reliability across different environmental conditions. Additionally, the ADF7023BCPZ is supported by a comprehensive development ecosystem, including evaluation boards and design resources, to accelerate product development and time-to-market.

With its combination of performance, power efficiency, and versatility, the ADF7023BCPZ from Analog Devices Inc. is an excellent choice for designers looking to implement robust wireless communication capabilities in their next project.
