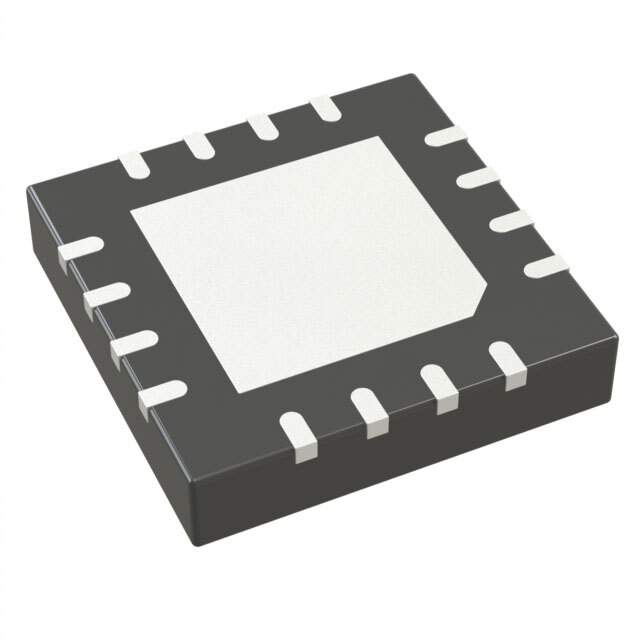

The ADG1208YCPZ-REEL, manufactured by Analog Devices Inc., is a high-performance, monolithic CMOS analog multiplexer belonging to the robust series of switch and multiplexer devices. This product comes in a compact, surface-mount LFCSP (Lead Frame Chip Scale Package) of 16 leads, making it suitable for space-constrained applications. It is supplied on a 7-inch reel, typically used for automated assembly processes, ensuring efficient handling and manufacturing throughput.

Key Features

• Channel Configuration: The device features an 8:1 single-channel multiplexer, allowing for multiple analog inputs to be routed to a single output, thereby simplifying signal routing and data acquisition systems.
• Low On Resistance: It boasts a low on resistance (Ron) that typically stands at 4.5 ohms, providing excellent signal fidelity and reducing signal attenuation.
• Low Crosstalk: With its design focused on minimizing interference, the ADG1208YCPZ-REEL offers low crosstalk between channels, which is crucial for maintaining signal integrity in complex systems.
• Wide Supply Range: The device operates with a dual supply voltage ranging from ±4.5 V to ±16.5 V or a single supply voltage from 9 V to 16.5 V, catering to a variety of power requirements.

Applications

The ADG1208YCPZ-REEL is versatile and can be employed in a wide array of applications including:

• Data acquisition systems
• Instrumentation
• Process control
• Communication systems
• Relay replacement
• Audio and video switching

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality, and the ADG1208YCPZ-REEL is no exception. It is designed to meet high standards of reliability and performance, ensuring stable operation in even the most demanding environments. The device is also RoHS compliant, adhering to current environmental standards and regulations.

For detailed specifications, application notes, and additional resources, it is recommended to consult the datasheet and product support documentation provided by Analog Devices Inc.
