The ADG3304BCBZ-REEL7 is a cutting-edge level translator manufactured by Analog Devices Inc., designed to provide seamless voltage level translation between different logic levels. This device is essential for interfacing components in multi-voltage digital systems, making it a versatile and indispensable component in modern electronics design.

Key Features

• 4-Channel Bidirectional Logic Level Translation: The ADG3304 allows for four channels of bidirectional voltage level translation between different logic levels, ranging from 1.15V to 5.5V on the VCCA side and 1.65V to 5.5V on the VCCY side.
• Low Voltage Operation: Capable of operating at low voltages, this level translator is suitable for portable and battery-operated devices.
• High-Speed Data Transfer: With its capability to support high-speed signal propagation, the ADG3304 is ideal for high-performance applications requiring rapid data transfer between different voltage domains.
• Flow-Through Design: The flow-through design minimizes the PCB layout routing challenges, offering a simplified design process for engineers.
• Power-Off Protection: The device ensures that when powered off, it will not back-power any of the devices it is interfaced with, thereby protecting the integrity of the system.

Applications

The versatility of the ADG3304BCBZ-REEL7 makes it suitable for a wide range of applications, including but not limited to:

• Level translation for SD/MMC cards
• Mobile phones, PDAs, and other portable devices
• GPS systems
• Notebook and desktop computers

Package and Availability

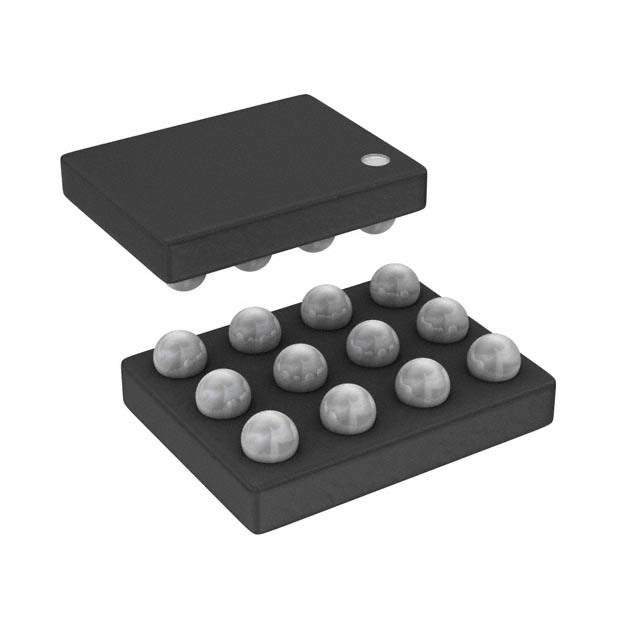

The ADG3304BCBZ-REEL7 is offered in a compact, surface-mount 12-ball, 0.5 mm pitch WLCSP (Wafer Level Chip Scale Package), which is suitable for space-constrained applications. It is available in tape and reel format, denoted by the 'REEL7' suffix, facilitating efficient assembly for high-volume production.

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the ADG3304BCBZ-REEL7 is no exception. It is designed and tested to meet the stringent standards expected of high-performance electronic components, ensuring dependable operation in a variety of environmental conditions.
