The ADG419BRM-REEL is a high-performance monolithic analog switch from Analog Devices Inc., designed to deliver precision and reliability in a compact package. This component is part of the ADG419 series, which is renowned for its excellent performance in a wide range of signal switching applications.

Key Features:

• Low On-Resistance: The ADG419BRM-REEL boasts a low on-resistance (R_ON) typically at 4 ohms, ensuring minimal signal distortion and power loss across the switch.
• Single-Supply Operation: It operates from a single 5 V to 15 V power supply, making it versatile for various applications without the need for dual supplies.
• Low Power Consumption: This switch has a very low power dissipation, with a maximum power consumption of only 35 µW, which is ideal for power-sensitive applications.
• Break-Before-Make Switching: The built-in break-before-make feature guarantees that no momentary short-circuit occurs when switching between channels, enhancing the longevity and reliability of the device.
• Fast Switching Times: With a t_ON of 150 ns and a t_OFF of 100 ns, the ADG419BRM-REEL provides rapid switching, which is crucial for high-speed signal processing.

Applications:

The ADG419BRM-REEL is suitable for a variety of applications, including:

• Test Equipment and Instrumentation
• Precision Data Acquisition Systems
• Communication Systems
• Battery-Powered Systems
• Sample-and-Hold Circuits
• Audio Signal Routing

Product Packaging:

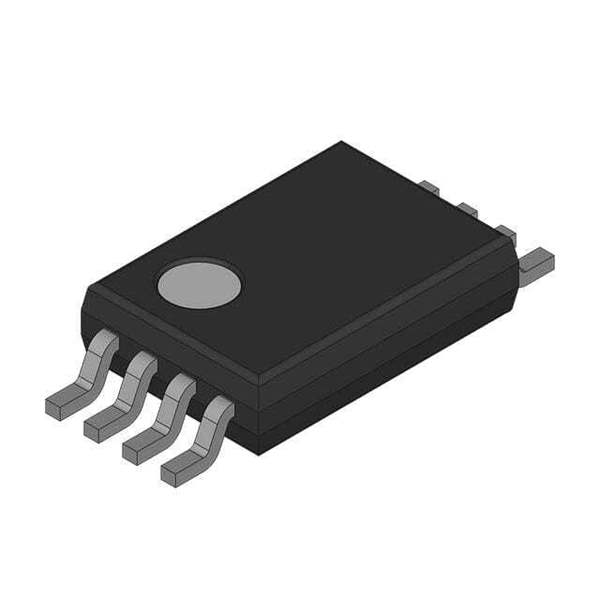

The "REEL" designation in the product name indicates that this component is supplied in tape and reel packaging, which is optimized for automated assembly processes. The package type is an 8-lead MSOP (Mini Small Outline Package), providing a compact footprint for space-constrained applications.

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality, and the ADG419BRM-REEL is no exception. It is designed to meet stringent industry standards, ensuring high reliability and consistent performance in even the most demanding environments.
