ADL5243ACPZ: High-Performance RF/IF Dual Channel Amplifier

The ADL5243ACPZ is a dual-channel, digitally controlled, variable gain amplifier (VGA) designed by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This component is tailored for demanding RF and IF applications, offering precise and reliable performance across a broad range of frequencies and environments.

The ADL5243ACPZ operates over a wide frequency range, making it suitable for a variety of applications, including wireless infrastructure, point-to-point radios, and broadband communications systems. It combines high linearity with low noise performance, ensuring excellent signal fidelity and dynamic range, which is critical for high-performance wireless systems.

Key Features:

• Frequency Range: The amplifier operates over a broad frequency range, providing versatility in its application across different RF and IF bands.
• Dual-Channel Configuration: With two amplifiers in one package, the ADL5243ACPZ allows for compact and efficient design solutions, saving space and reducing component count.
• Digital Gain Control: The gain of each channel can be independently controlled through a serial interface, offering precise control over the amplification of the signal.
• High Linearity: The device exhibits excellent linearity, which minimizes distortion and allows for the transmission of high-quality signals.
• Low Noise Figure: The low noise figure of the ADL5243ACPZ ensures that the signal integrity is maintained, particularly in sensitive communication systems.
• Integrated Features: The device includes additional features such as a power-down mode and bias adjust capability, enhancing its flexibility and power efficiency.

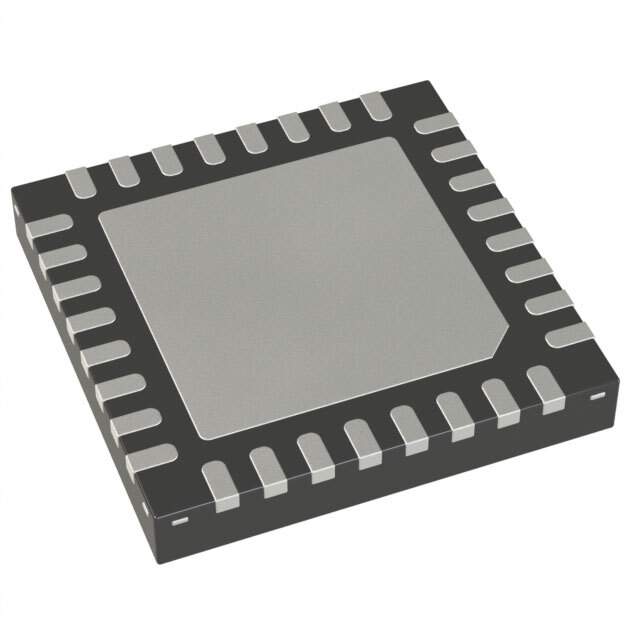

The ADL5243ACPZ is housed in a compact LFCSP (Lead Frame Chip Scale Package) that is designed for easy integration into a wide range of electronic systems. Its robust design is built to meet the stringent requirements of modern RF and IF signal chains, making it an ideal choice for engineers looking to improve system performance while maintaining efficiency and reliability.

With its combination of performance, integration, and control, the ADL5243ACPZ from Analog Devices Inc. stands out as a superior solution for advanced RF/IF amplification needs in today's fast-paced and ever-evolving technological landscape.
