The HMC260LC3B from Analog Devices Inc. is a high-performance, double-balanced mixer designed to address a wide range of radio frequency (RF) and microwave applications. This gallium arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) mixer is an ideal choice for designers looking for a device that provides excellent conversion loss, isolation, and input IP3 performance over a broad frequency range.

Key Features:

• Frequency Range: The HMC260LC3B operates over an RF and LO frequency range of 15 to 28 GHz, with an intermediate frequency (IF) range of DC to 5 GHz, making it versatile for a variety of high-frequency applications.
• Conversion Loss: It offers a conversion loss of 9 dB, which helps maintain signal integrity through the mixing process.
• High Isolation: The device boasts high isolation levels, with 25 dB of LO to RF isolation and 18 dB of LO to IF isolation, ensuring minimal leakage between signal paths.
• Input IP3: An input third-order intercept point (IP3) of 25 dBm provides a measure of linearity, which is crucial in maintaining signal fidelity in complex signal environments.

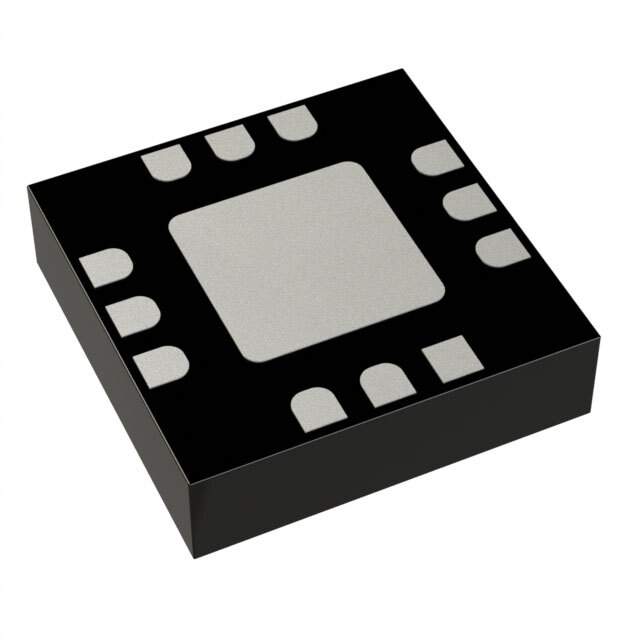

• Surface Mount Package: Housed in a compact 3x3 mm ceramic SMT package, the HMC260LC3B is suitable for space-constrained applications and is easy to integrate into existing designs.

Applications:

The HMC260LC3B is designed for use in a variety of applications, including:

• Point-to-point and point-to-multipoint radios
• Military and space
• Test instrumentation
• Satellite communication systems

Conclusion:

With its robust performance and flexible operating frequencies, the HMC260LC3B from Analog Devices Inc. is a strong candidate for any application requiring a high-quality, reliable double-balanced mixer. Its integration into a surface mount package makes it an attractive option for designers working on advanced RF and microwave systems where performance and space are at a premium.
