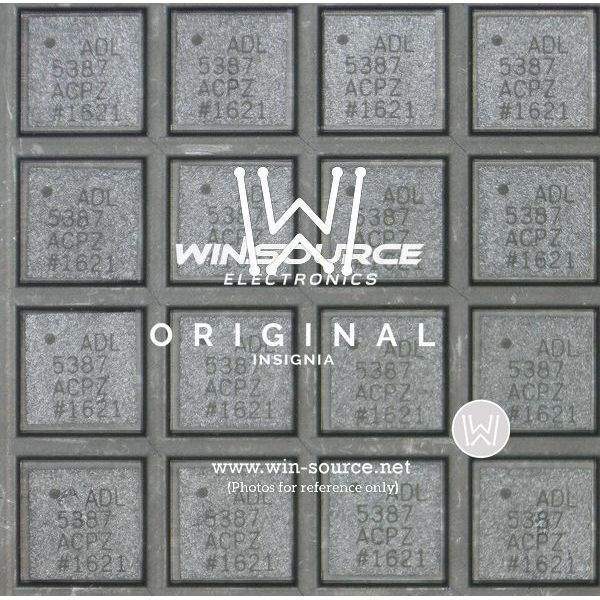

The ADL5387ACPZ is a high-performance, broadband quadrature demodulator from Analog Devices Inc., designed to support a wide range of applications including wireless infrastructure, satellite communications, and broadband data applications. This demodulator is part of Analog Devices' extensive RF product portfolio, which is renowned for its high-quality and reliable components.

Key Features

• Frequency Range: The ADL5387ACPZ operates over a broad frequency range from 400 MHz to 6 GHz, making it highly versatile for various RF applications.
• High Linearity: It provides exceptional IIP3 performance of 25.5 dBm, ensuring high linearity and low distortion in signal processing.
• Integrated LO Amplifier: The device includes an integrated LO amplifier, which simplifies the design and reduces the number of external components required.
• Baseband Amplifiers: On-chip baseband amplifiers with adjustable bias current allow for optimization of performance versus power consumption based on application needs.
• Power Efficient: The ADL5387ACPZ is designed for efficient power consumption, with a typical supply current of 190 mA from a 5 V supply.

Product Specifications

Applications

The ADL5387ACPZ is ideal for a variety of applications, including but not limited to:

• Wireless Infrastructure (GSM, WCDMA, LTE)
• Point-to-Point and Point-to-Multipoint Radio
• Satellite Communications Systems
• Broadband Data and Fixed Wireless Access

With its high performance and flexibility, the ADL5387ACPZ from Analog Devices Inc. is an excellent choice for designers looking to implement a reliable and efficient demodulation solution in their RF systems.
