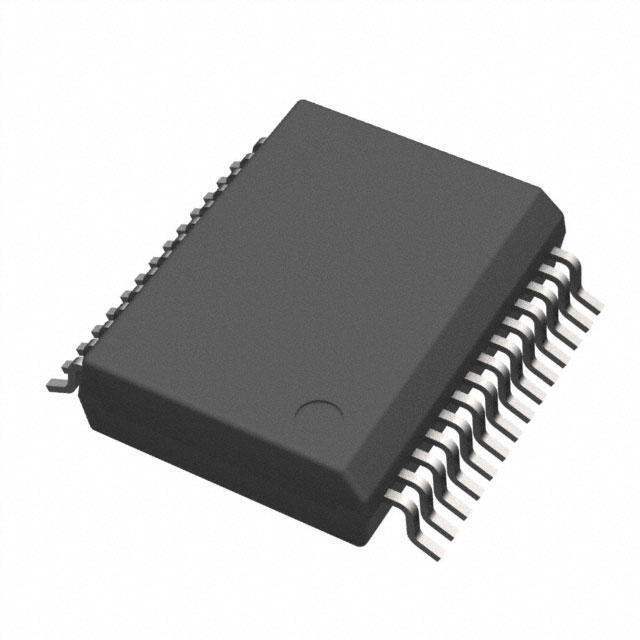

ADM2563EBRNZ Signal Isolator by Analog Devices Inc.

The ADM2563EBRNZ is a robust, high-performance signal isolator manufactured by Analog Devices Inc., designed to ensure reliable data communication in electrically noisy environments. This component is part of the ADM2563E series, which is known for its integrated iCoupler® and isoPower® technologies, providing both signal isolation and isolated power in a single package. The ADM2563EBRNZ is particularly suited for industrial applications where electromagnetic interference (EMI) can compromise data integrity and where ground loops can cause damage to sensitive electronic equipment.

Key Features

• Integrated Isolation: The ADM2563EBRNZ incorporates both digital isolators and a DC-to-DC converter, offering 2.5 kV RMS isolation for the data signals and providing an isolated power supply.
• High Data Rates: It supports robust data transmission rates up to 16 Mbps, making it suitable for high-speed serial communication protocols.
• Low Emissions: With its low radiated emissions and edge rate control, the ADM2563EBRNZ is designed to meet stringent EMC regulations, making it an ideal choice for industrial environments.
• Wide Temperature Range: The device operates effectively across a broad temperature range from -40°C to +105°C, ensuring reliability in extreme conditions.
• Compact Footprint: Housed in a compact, surface-mount, 20-lead wide-body SOIC package, the ADM2563EBRNZ saves valuable board space while providing excellent isolation capabilities.

Applications

• Industrial field buses and networks
• Isolated RS-485/RS-422 interfaces
• Motor control and drive systems
• Process control equipment
• Power inverters and converters

The ADM2563EBRNZ from Analog Devices Inc. is a testament to the company's commitment to providing advanced isolation solutions that enhance the performance and safety of electronic systems. With its combination of high-speed data transfer, integrated power isolation, and a small form factor, this product is an excellent choice for engineers looking to improve the reliability and efficiency of their designs.
