Product Overview: ADM3251EARWZ by Analog Devices Inc.

The ADM3251EARWZ is a high-performance, isolated, single-channel RS-232/V.28 transceiver from the renowned semiconductor manufacturer Analog Devices Inc. This device is designed to provide reliable data communication with complete galvanic isolation between the data line and the local logic ground. This isolation helps to protect the local digital circuitry from high voltage spikes and ground loop currents that can be present on the RS-232 line.

Key Features

• Isolation: The ADM3251EARWZ offers 2.5 kV rms isolation for 1 minute, as per the UL 1577 standard. This feature ensures that the device can handle rough industrial environments where electrical isolation is a critical requirement.
• Interface: It supports the industry-standard RS-232/V.28 protocol, making it suitable for use in a wide range of communication applications.
• Data Rate: The device is capable of supporting data rates up to 460 kbps, allowing for high-speed data transmission.
• Power Supply: It operates from a single 5 V power supply, which simplifies the power design in systems where 5 V is readily available.
• Integrated ESD Protection: The ADM3251EARWZ has an integrated ESD protection circuitry, which provides ±15 kV ESD protection on RS-232 input/output lines, enhancing the robustness of the application.
• Temperature Range: The device is rated for operation over the industrial temperature range of -40°C to +85°C, making it suitable for harsh environmental conditions.

Applications

Ideal for a variety of applications, the ADM3251EARWZ is commonly used in industrial and instrumentation applications, such as process control interfaces, data acquisition systems, and point of sale systems. Its robust design also makes it a great choice for medical equipment where isolation is necessary for patient safety.

Package and Quality

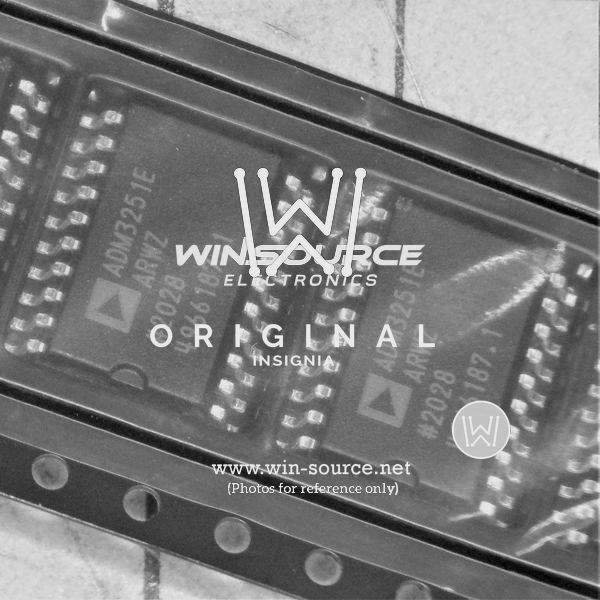

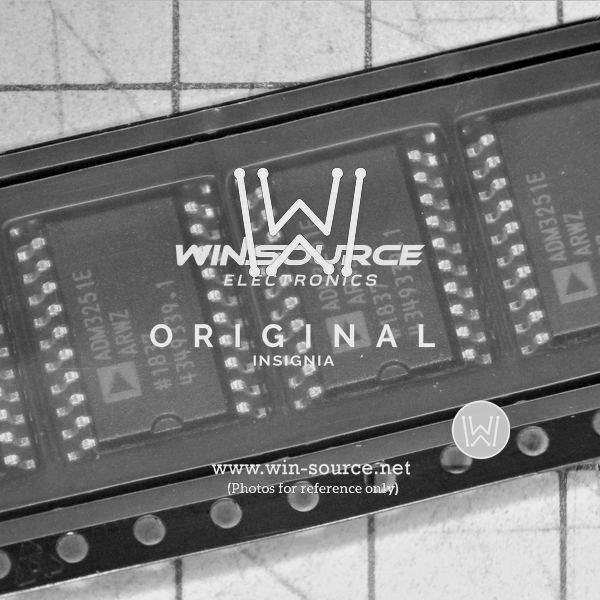

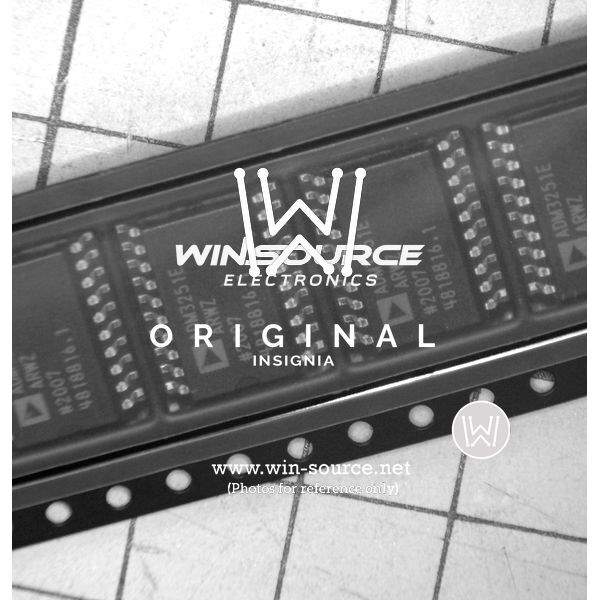

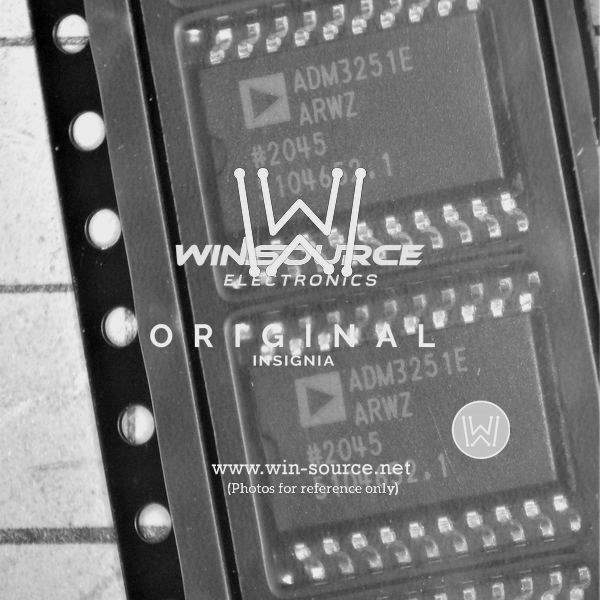

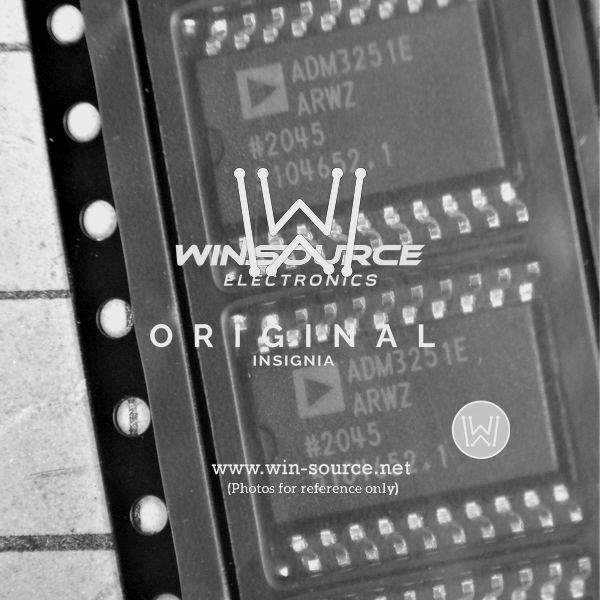

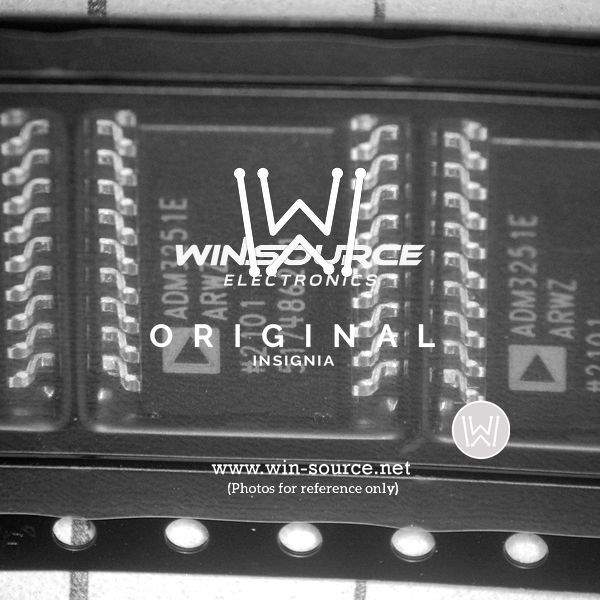

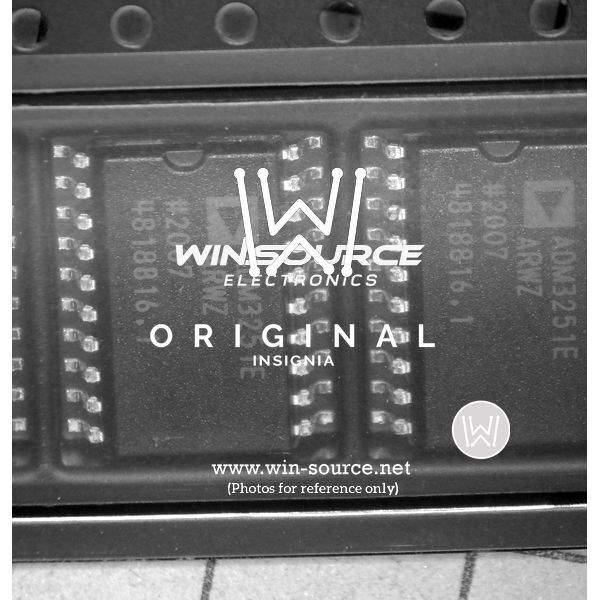

The device comes in a wide-body, 16-lead SOIC package, ensuring it is compact enough for space-constrained applications while still offering the necessary pin separation for the required isolation voltage. Analog Devices Inc. is known for its commitment to high-quality products, and the ADM3251EARWZ is no exception, with rigorous testing and quality control measures in place to ensure reliable performance in the field.
