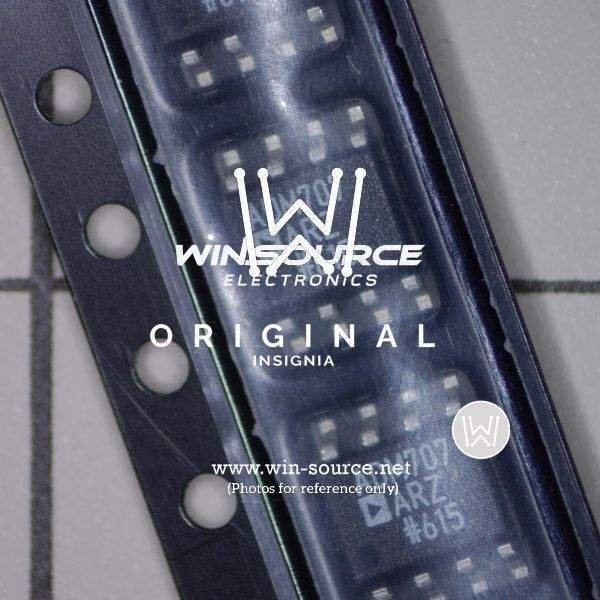

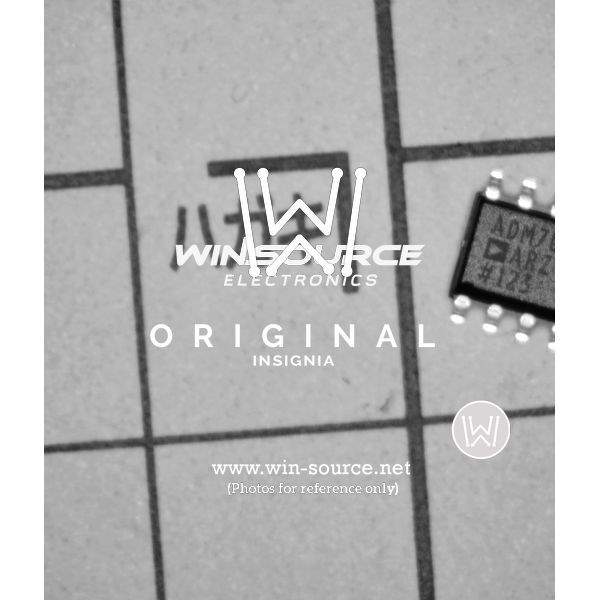

ADM707ARZ-RELL by Analog Devices Inc.

The ADM707ARZ-RELL is a high-performance, low-power supervisory circuit produced by Analog Devices Inc., a leader in the semiconductor industry. This compact, reliable component is designed to monitor power supplies in microprocessor systems, providing essential protection and control features that ensure system stability and functionality.

Key Features:

• Power Supply Monitoring: The ADM707ARZ-RELL actively supervises the system's power supply, ensuring that voltage levels remain within acceptable thresholds. It is capable of monitoring a 4.40V threshold, which is vital for preventing data corruption and hardware damage due to unstable or inadequate power supply.
• Reset Output: This device generates a reset signal whenever the monitored power supply falls below the factory-set threshold. The reset output remains active for a minimum of 140 ms after the supply voltage exceeds the reset threshold, providing ample time for the system to stabilize.
• Low Power Consumption: With a quiescent current of typically 15 µA, the ADM707ARZ-RELL is an energy-efficient solution, contributing to the overall power efficiency of the system it is integrated into.
• Watchdog Timer: The built-in watchdog timer improves system reliability by resetting the microprocessor if it fails to stroke the watchdog within a preset timeout period, indicating a system malfunction or software error.
• Manual Reset Input: An additional feature of this supervisory circuit is the manual reset input, which allows for an external trigger to initiate a system reset, offering flexibility and control for maintenance or emergency interventions.

Applications:

The ADM707ARZ-RELL is versatile and can be used in a variety of applications, including:

• Microprocessor systems
• Computers and servers
• Embedded systems
• Industrial controllers
• Portable/battery-powered equipment

With its robust feature set and Analog Devices Inc.'s reputation for quality, the ADM707ARZ-RELL is an excellent choice for system designers seeking a reliable supervisory solution. It is available in a compact 8-lead SOIC package, which allows for efficient use of board space in space-constrained applications.

The ADM707ARZ-RELL from Analog Devices Inc. represents a blend of precision engineering and practical design, ensuring that your systems maintain optimal performance and resilience against power-related issues.
